Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate garnish molding.
  2. Disconnect the wiper motor electrical connector.
  3. Remove the wiper arm from the wiper motor. Refer to Wiper Arm Blade Replacement - Rear  .
  4. Remove the nut, the spacer, and the seal.
  5. Remove the 2 bolts and the wiper motor from the liftgate.

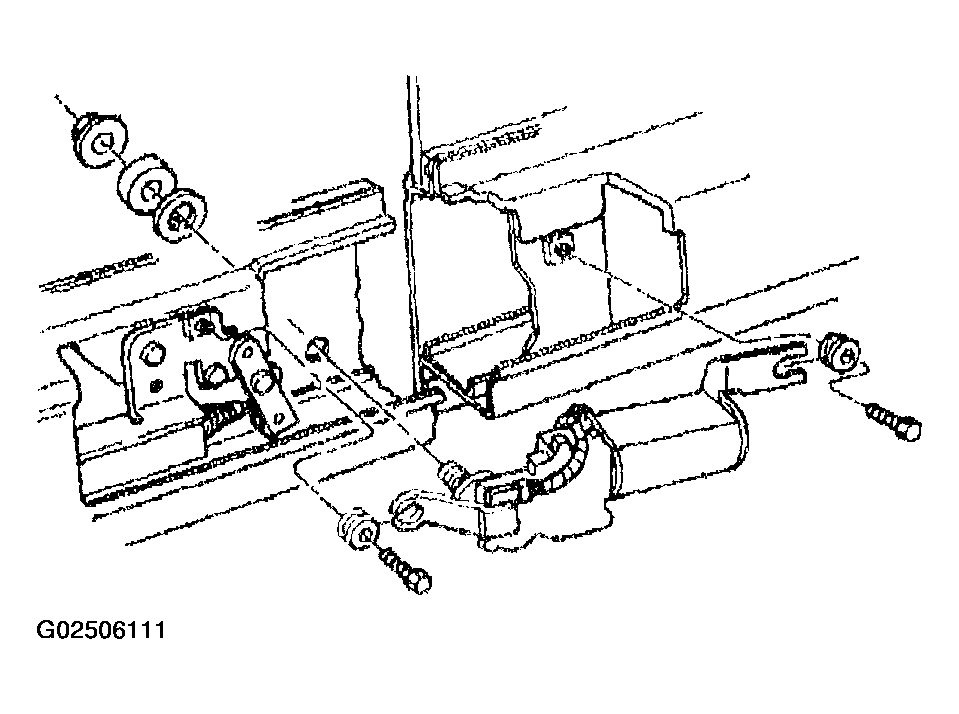

    Fig 1: Wiper Motor Replacement - Lift Gate
    G02506111Courtesy of GENERAL MOTORS CORP.
