Removal Procedure
WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
Important: Mark the position of the wiper blade on the liftgate with a suitable marker or a piece of masking tape.
- Pull the washer hose through the liftgate grommet.
- Disconnect the washer hose from the washer harness connector.

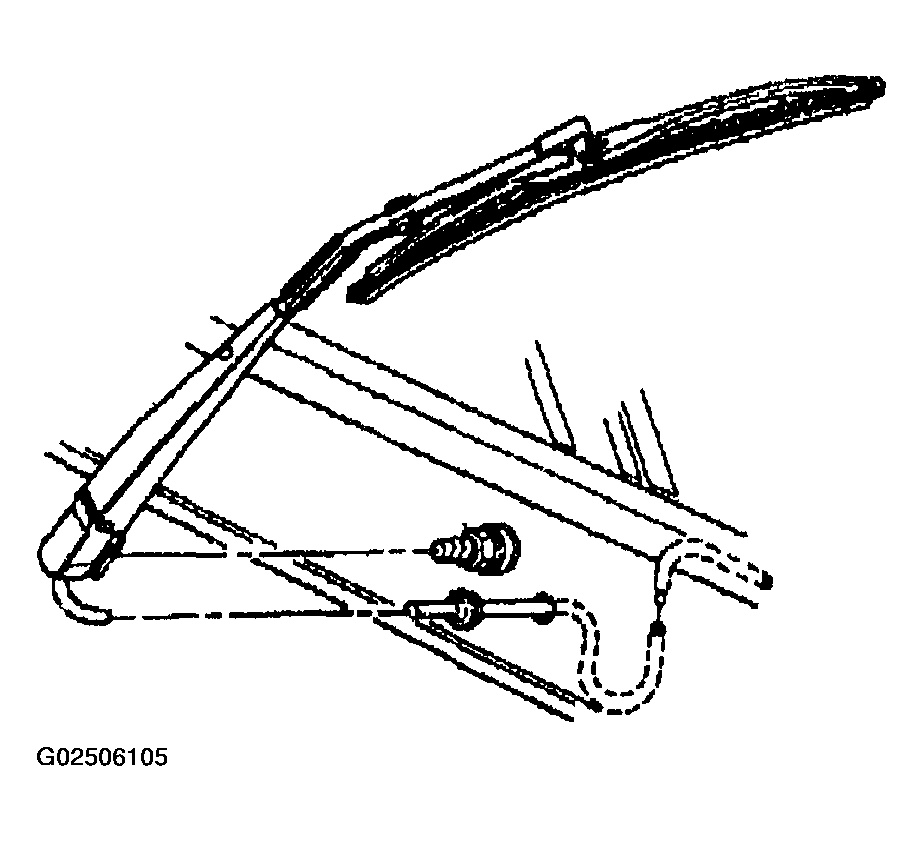

- Lift the wiper arm off the liftgate.
- Push out the wiper arm retaining clip with a small screwdriver.
- Remove the wiper arm from the wiper motor drive shaft.
