Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent container. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT .
  2. Disconnect the washer hose(s).
  3. Remove the washer pump(s) from the washer solvent container.

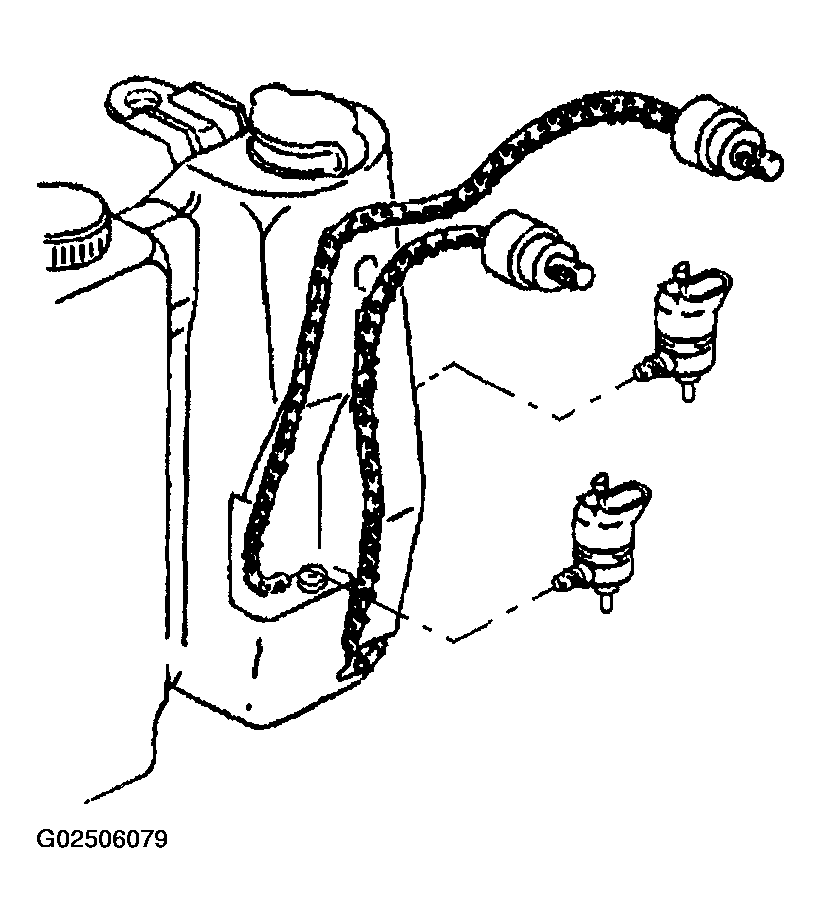

    Fig 1: Washer Pumps
    G02506079Courtesy of GENERAL MOTORS CORP.
