Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent container. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT .
  2. Remove the washer hose from the rear washer pump to the rear washer check valve.
  3. Remove the rear washer check valve.
  4. Remove the washer hose from the front washer pump to the front washer check valve.
  5. Remove the front washer check valve.

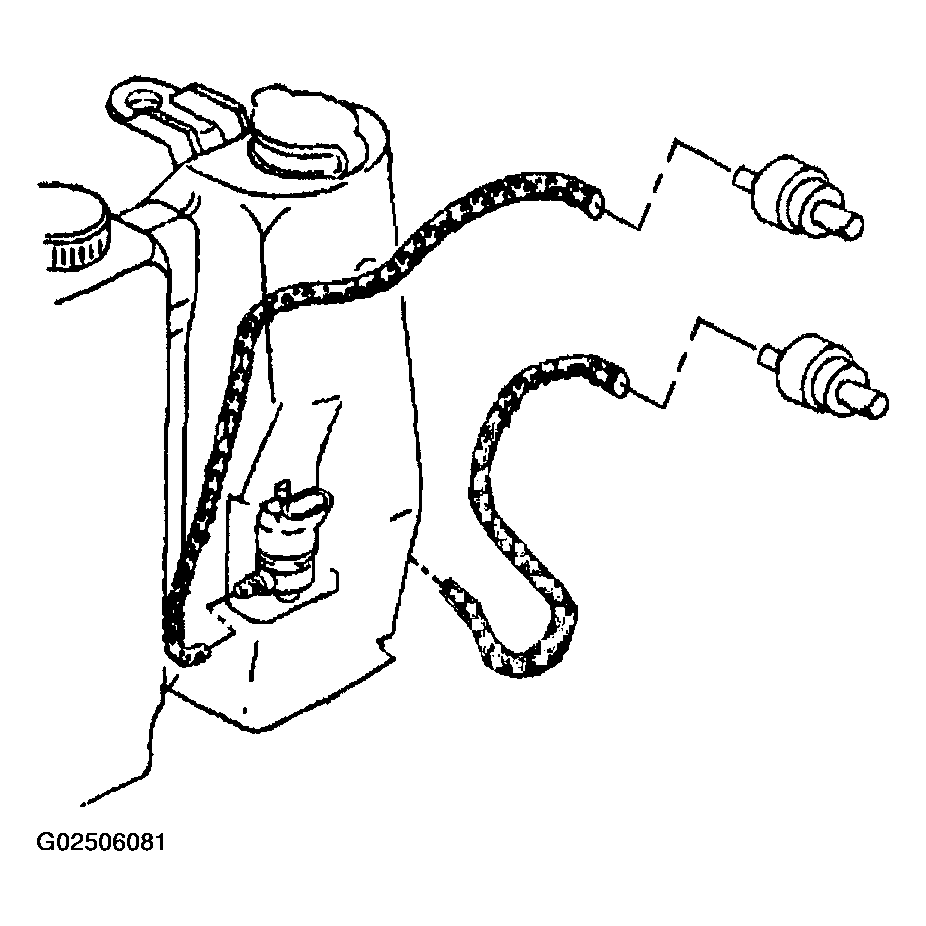

    Fig 1: Front Washer Check Valve
    G02506081Courtesy of GENERAL MOTORS CORP.
  6. Remove the front washer hose and strap.

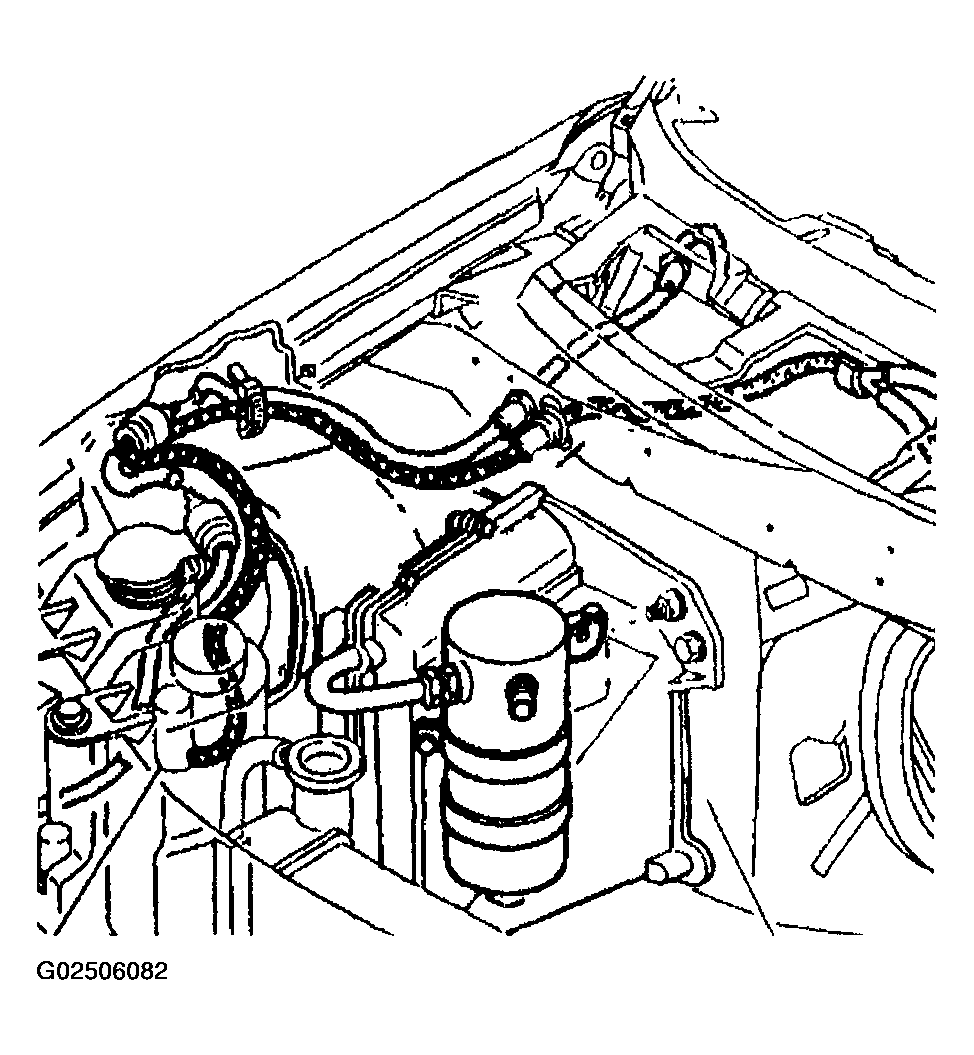

    Fig 2: Front Washer Hose & Strap
    G02506082Courtesy of GENERAL MOTORS CORP.
  7. Remove the washer hose connector from the plenum clip.
  8. Remove the RH washer nozzle hose and hose clip.

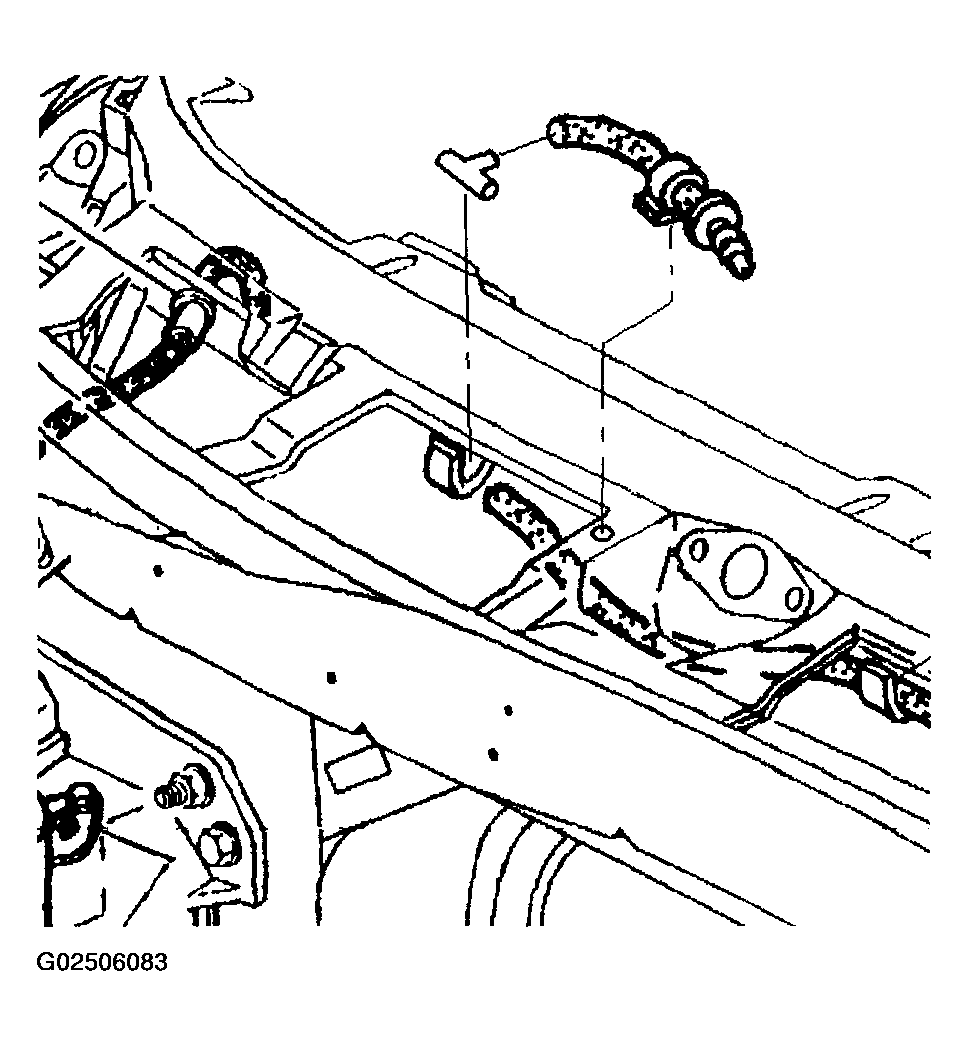

    Fig 3: Right Washer Nozzle Hose & Hose Clip
    G02506083Courtesy of GENERAL MOTORS CORP.
  9. Remove the LH washer nozzle hose from the 2 plenum clips.
  10. Remove the LH washer nozzle hose and hose clip.

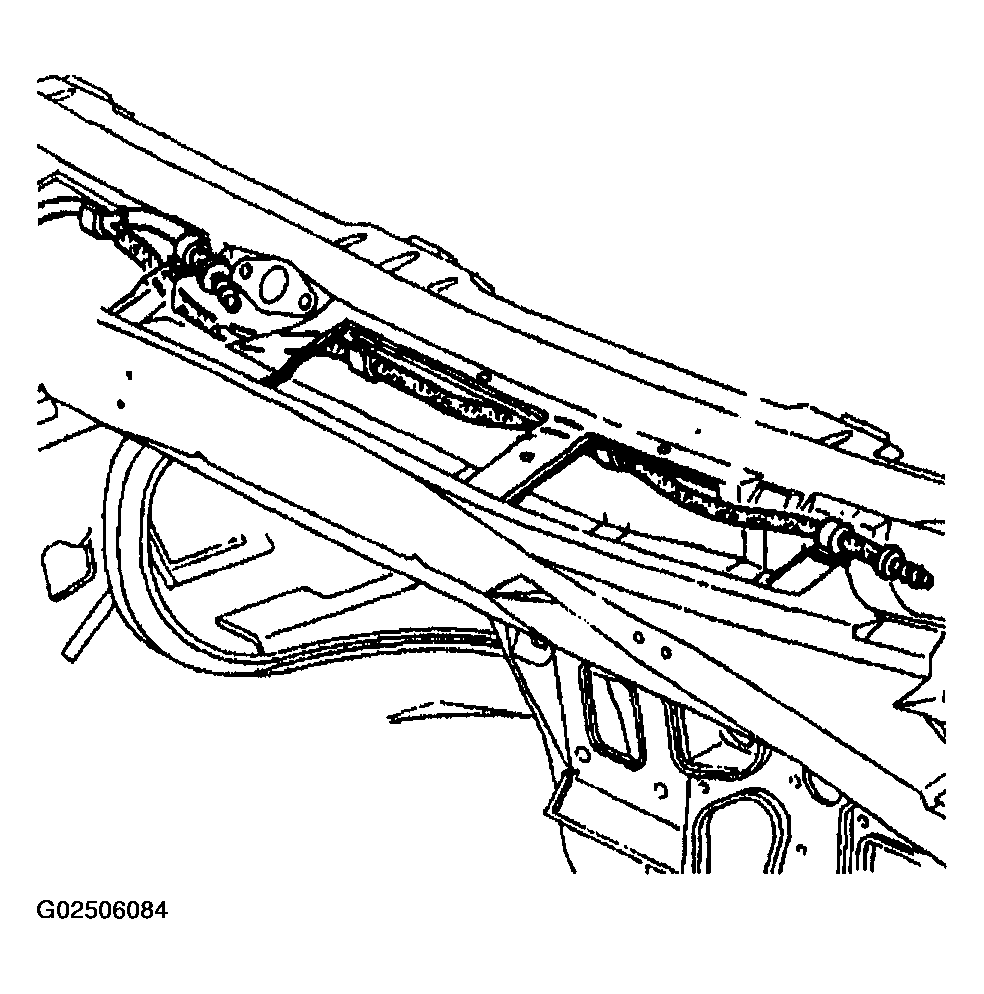

    Fig 4: Left Washer Nozzle Hose & Hose Clip
    G02506084Courtesy of GENERAL MOTORS CORP.
