Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the sunshade down.
  2. Lift the vanity mirror cover.
  3. Remove the lens by gently prying at the top or the bottom of the lens with a suitable flat bladed tool.
  4. Lift the bulb(s) straight out.

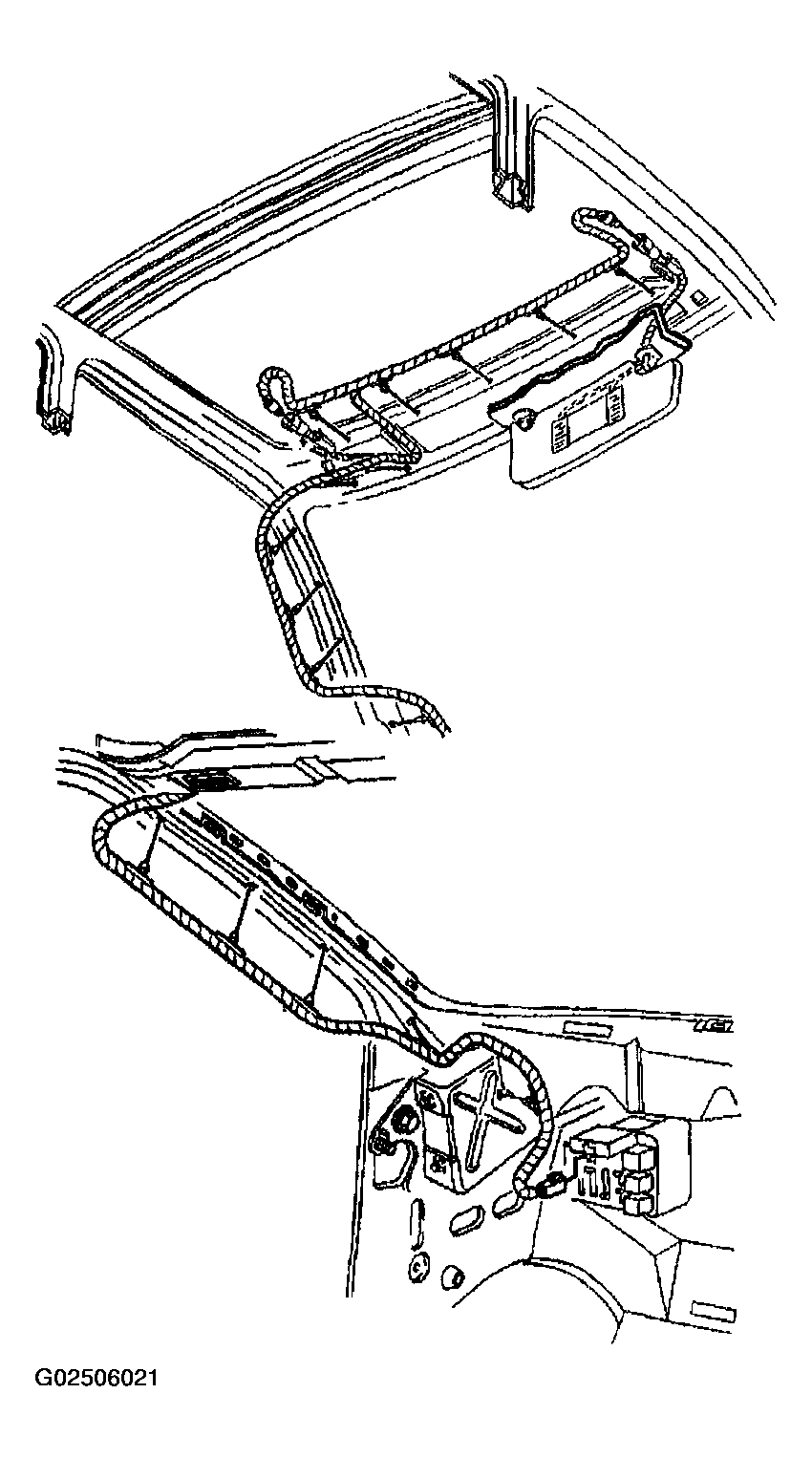

    Fig 1: Vanity Mirror Lamp
    G02506021Courtesy of GENERAL MOTORS CORP.
