Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw that retains the lens.
  2. Gently pry off the lens.
  3. Pull out the bulb.

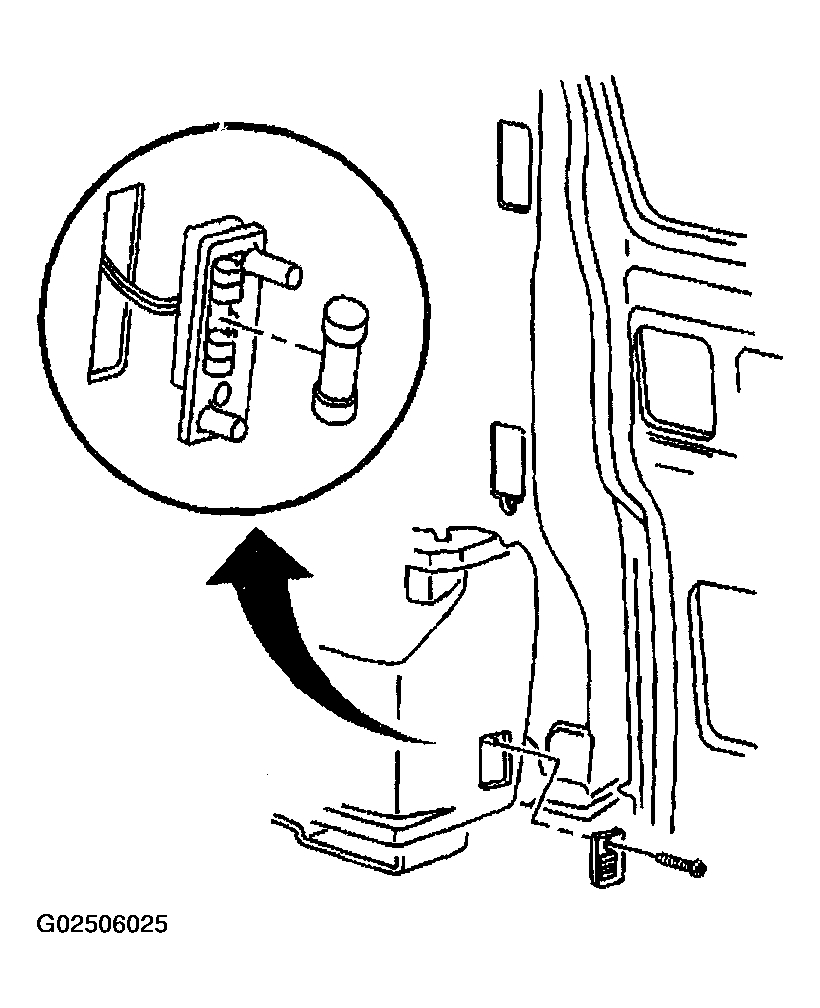

    Fig 1: Stepwell Lamp
    G02506025Courtesy of GENERAL MOTORS CORP.
