Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn OFF the headlamp switch.
  2. Remove the mounting screws.
  3. Remove the park/turn signal lamp from the vehicle.
  4. Remove the lamp sockets from the park/turn signal lamp housing.
  5. Remove the bulbs from the lamp sockets.

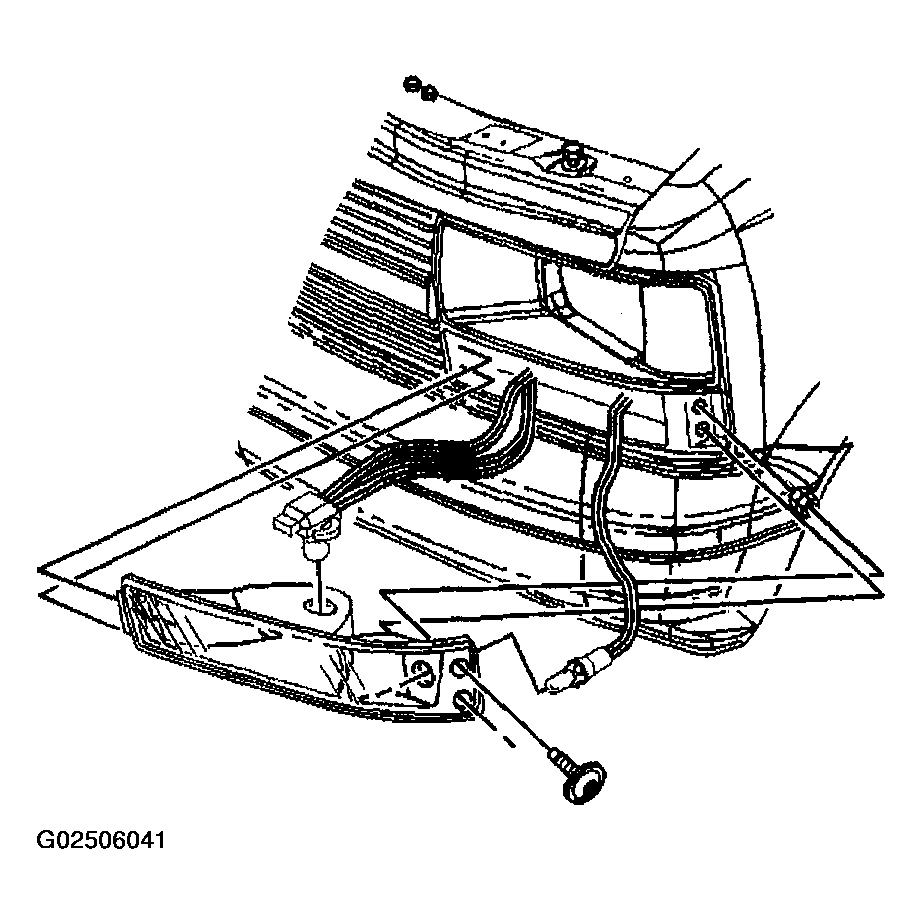

    Fig 1: Park/Turn Signal Lamp
    G02506041Courtesy of GENERAL MOTORS CORP.
