Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel storage compartment.

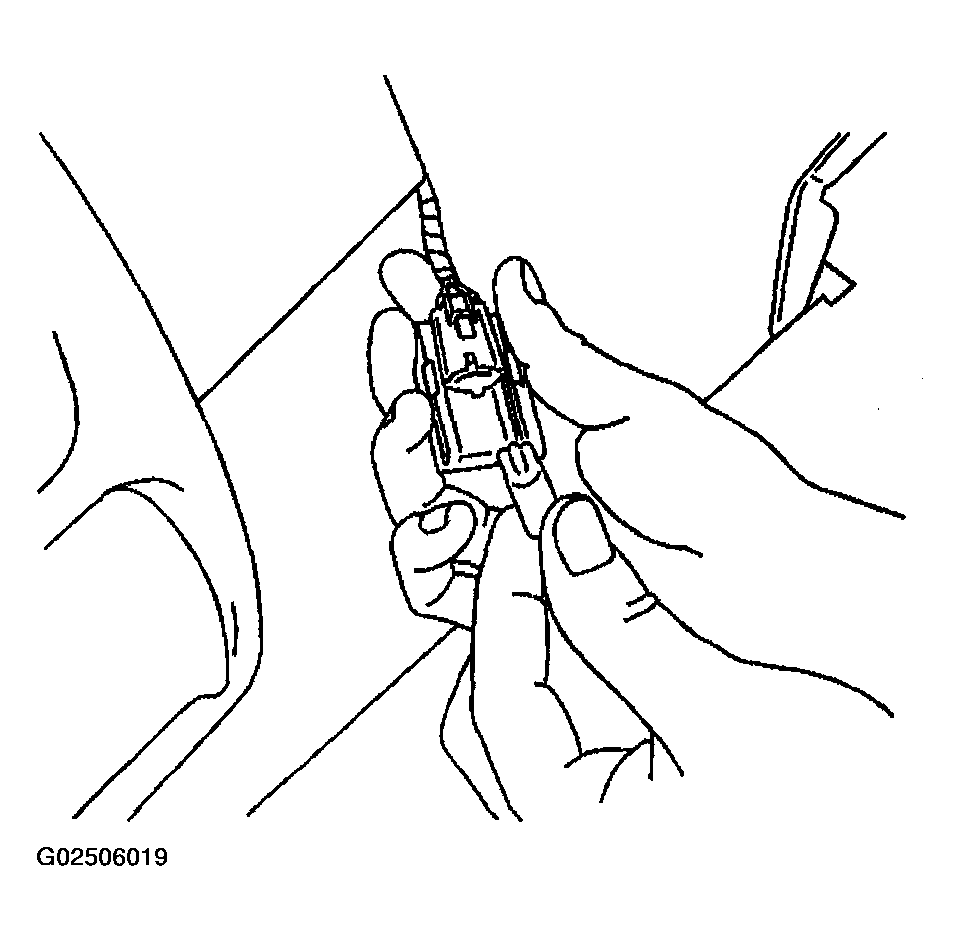

    Fig 1: IP Storage Compartment Lamp
    G02506019Courtesy of GENERAL MOTORS CORP.
  2. Gently depress the tabs at the top and the bottom of the compartment lamp switch by using a small flat-bladed tool.
  3. Remove the compartment lamp switch.
  4. Disconnect the electrical connector from the switch.
  5. Pull the bulb from the compartment lamp switch.
