Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .

    Important:  Bulbs and sockets are one-piece units and should not be separated.

  2. Remove the socket and bulb assembly from the back of the cluster.

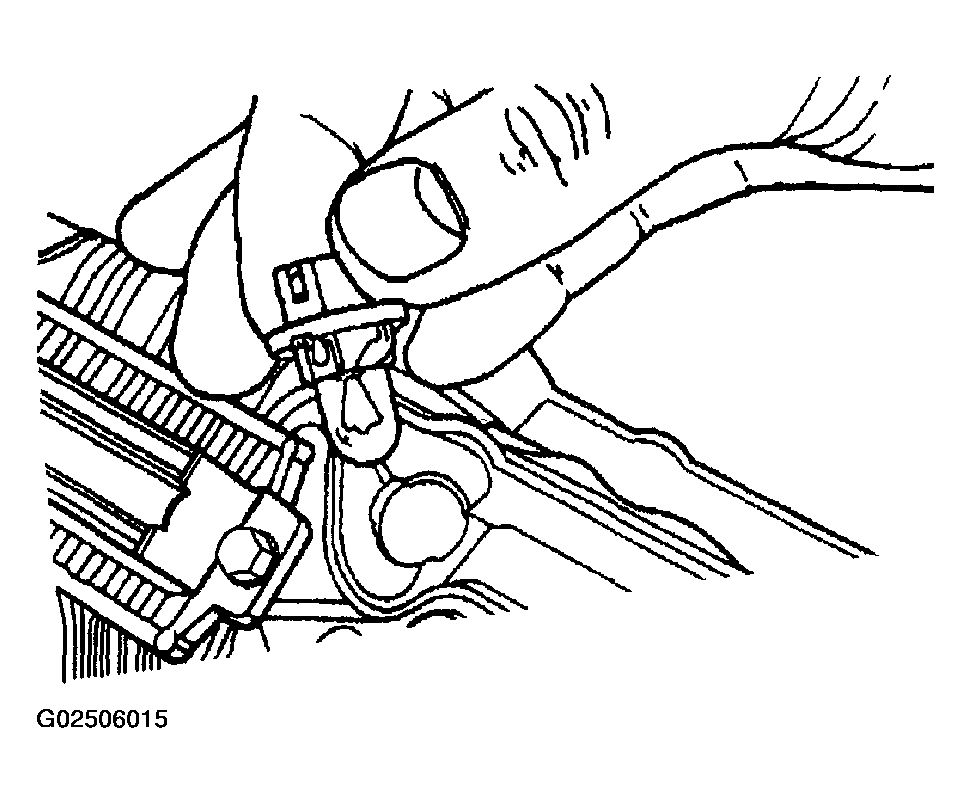

    Fig 1: IP Lamp
    G02506015Courtesy of GENERAL MOTORS CORP.
