Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center high-mounted stop lamp retaining screws.
  2. Gently pull the electrical connector through the top of the roof.
  3. Disconnect the electrical connector.
  4. Remove the high-mounted stop lamp from the vehicle.

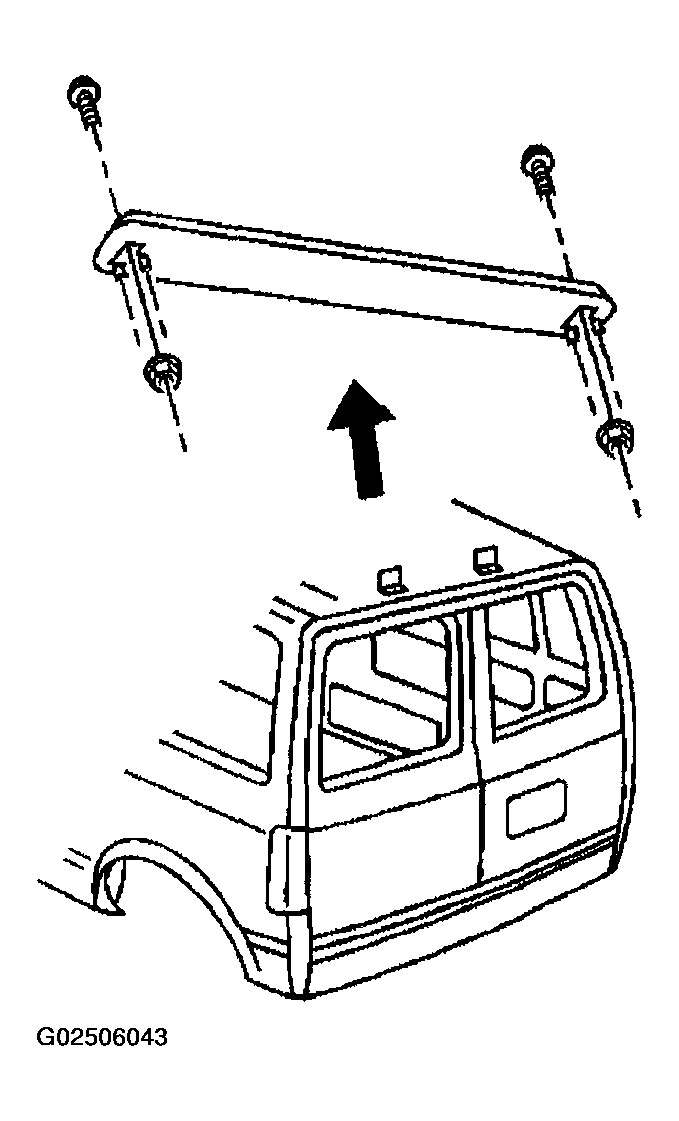

    Fig 1: High Mounted Stop Lamp
    G02506043Courtesy of GENERAL MOTORS CORP.
