Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn off the headlamp switch.
  2. Open the hood.
  3. Remove the screw that retains the corner capsule to the composite headlamp.

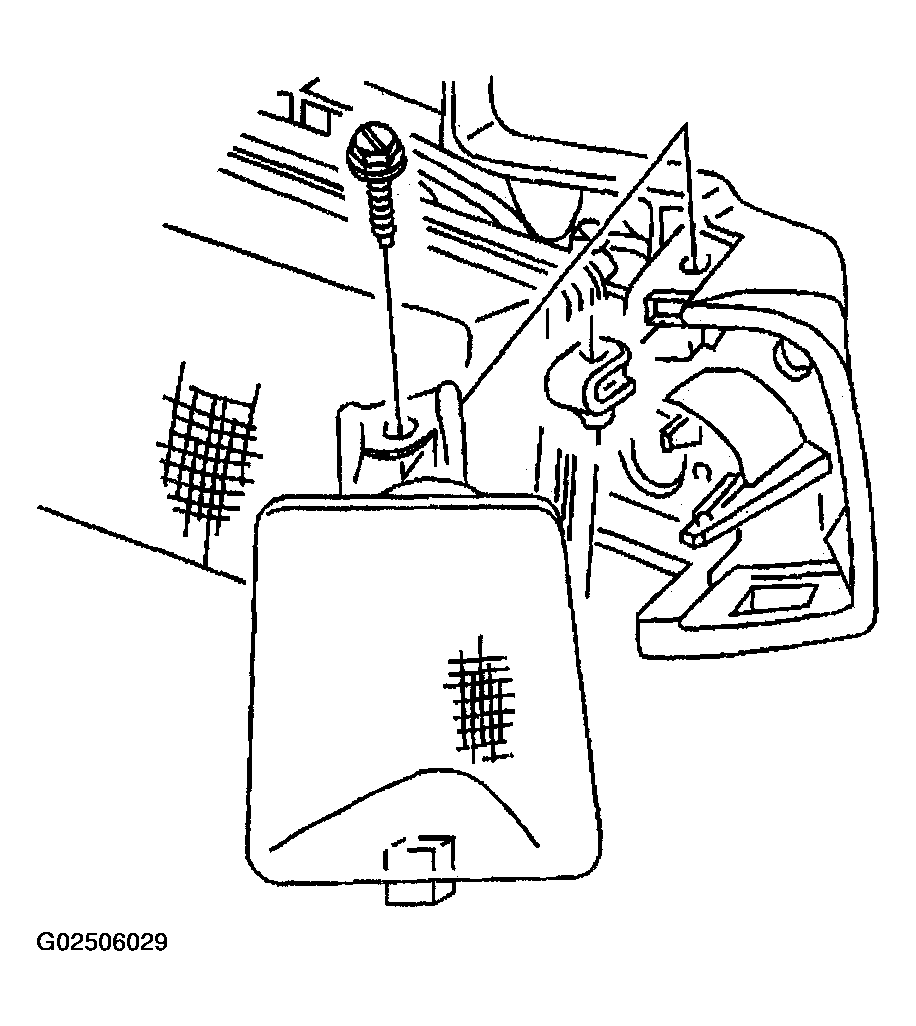

    Fig 1: Composite Headlamp
    G02506029Courtesy of GENERAL MOTORS CORP.
  4. Remove the three bolts that retain the composite headlamp.
  5. Remove the headlamp.
  6. Disconnect the headlamp electrical connectors.
  7. Remove the headlamp bulbs.
