Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn OFF the headlamp switch.
  2. Remove the headlamp retaining ring screws.
  3. Remove the headlamp retaining ring.
  4. Remove the headlamp.
  5. Disconnect the headlamp electrical connector.

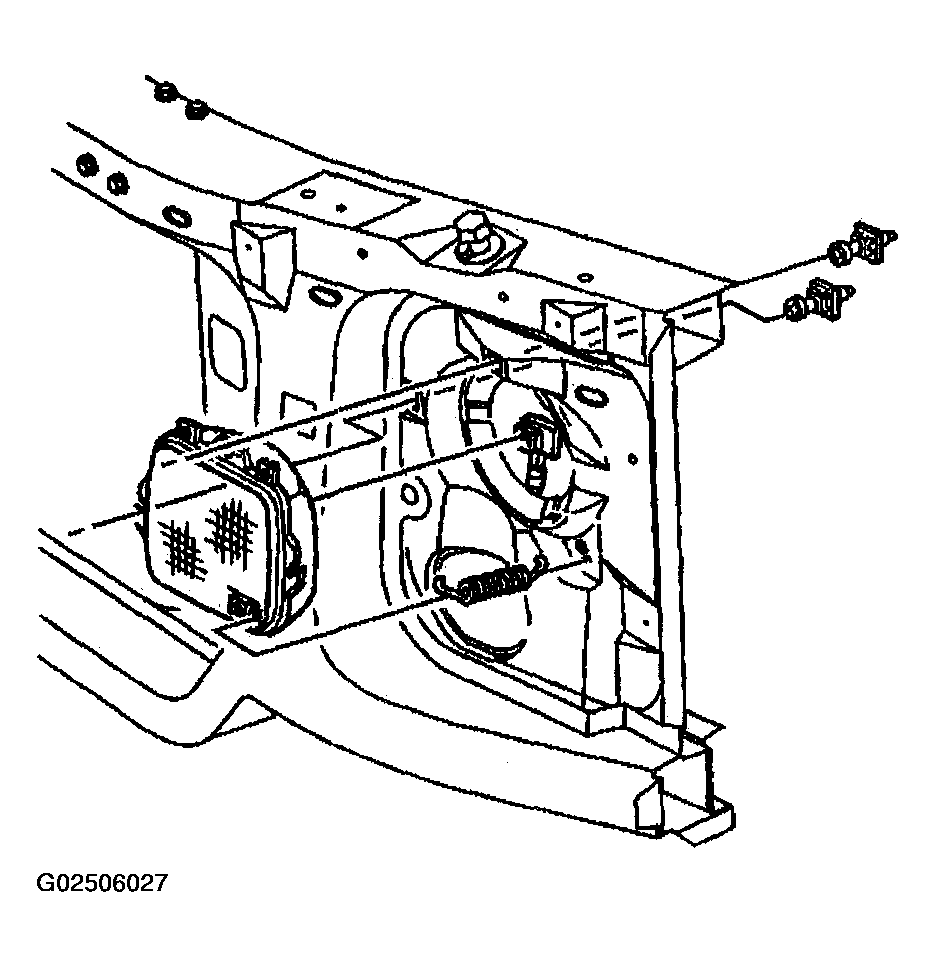

    Fig 1: Headlamp Replacement (Sealed Beam)
    G02506027Courtesy of GENERAL MOTORS CORP.
