Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn OFF the headlamp switch.
  2. Disconnect the electrical connector from the headlamp bulb.
    CAUTION: Halogen bulbs contain gas under pressure. Handling a bulb improperly could cause it to shatter into flying glass fragments. To help avoid personal injury:
    • Turn off the lamp switch and allow the bulb to cool before changing the bulb.
    • Leave the lamp switch OFF until the bulb change is complete.
    • Always wear eye protection when changing a halogen bulb.
    • Handle the bulb only by its base. Avoid touching the glass.
    • Keep dirt and moisture off the bulb.
    • Properly dispose of the used bulb.
    • Keep halogen bulbs out of the reach of children.
  3. Rotate the bulb counterclockwise in order to disengage the bulb from the headlamp.
  4. Remove the bulb from the headlamp.

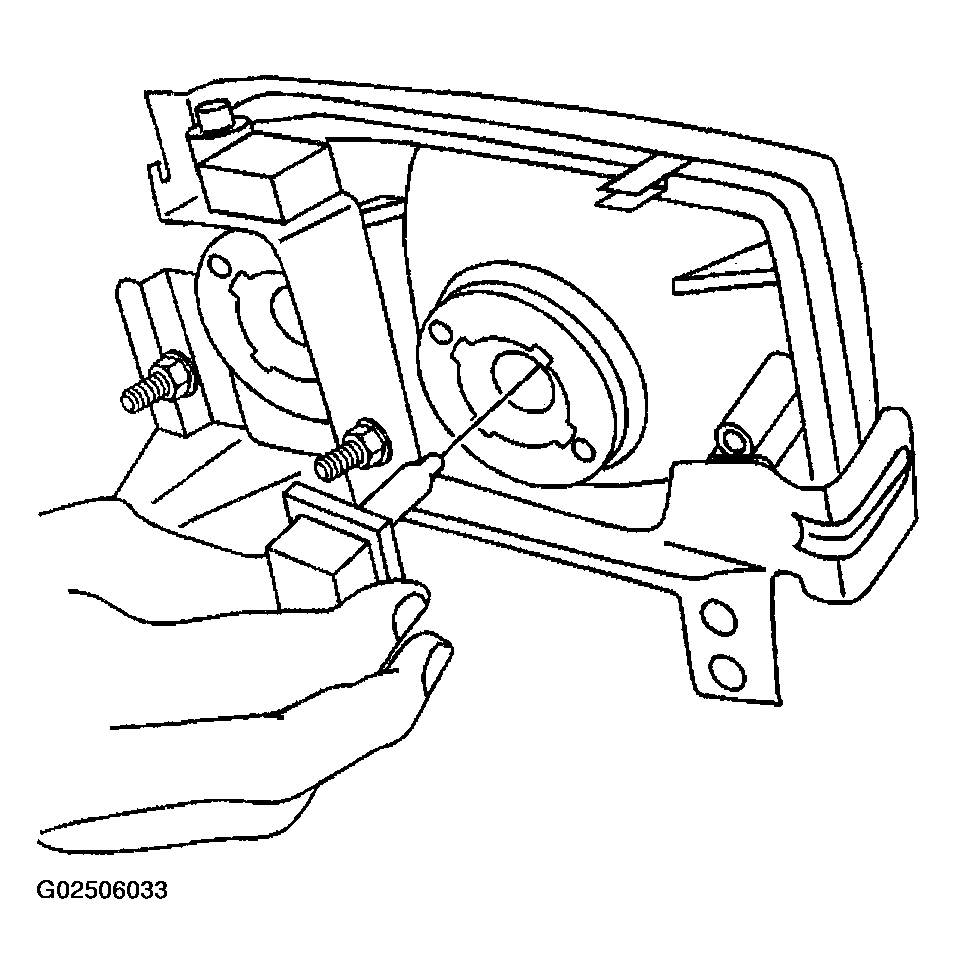

    Fig 1: Removing Bulb From Headlamp
    G02506033Courtesy of GENERAL MOTORS CORP.
