Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the driver door.
  2. In order to remove the flasher module (1) from the instrument panel (IP) convenience center, simultaneously perform the following:
    1. 2.1. Lift upward on the tab that retains the flasher module to the IP convenience center.
    2. 2.2. Remove the flasher module from the IP convenience center.

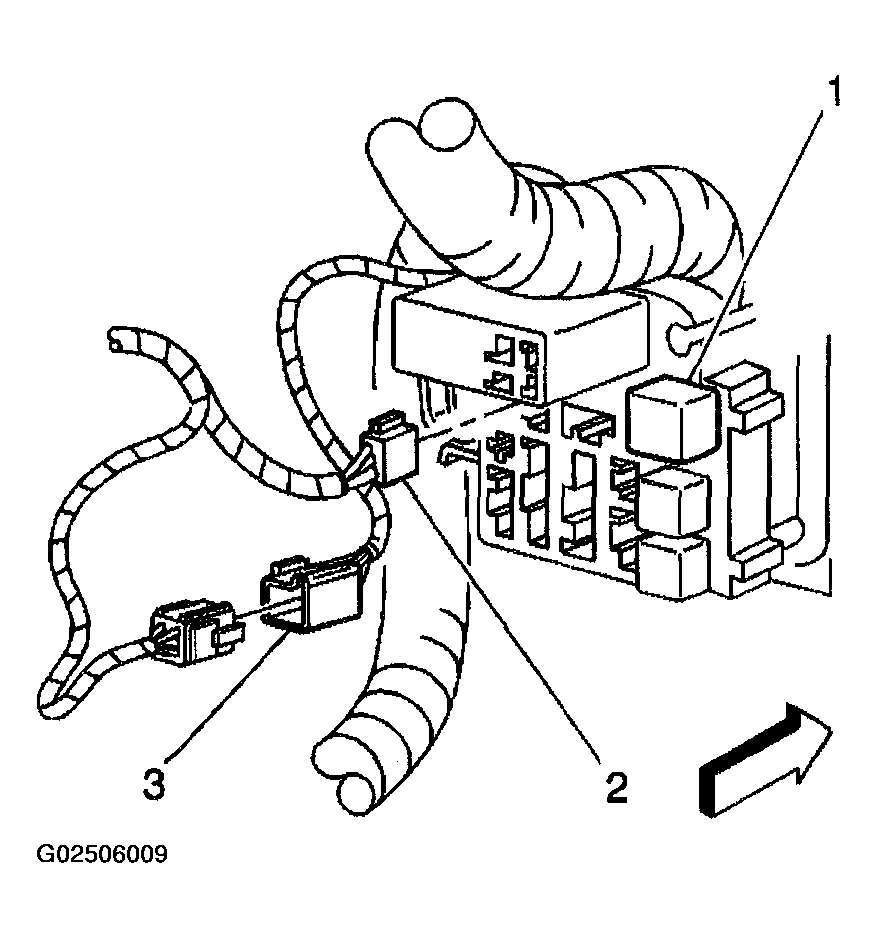

    Fig 1: Hazard & Turn Signal Flasher
    G02506009Courtesy of GENERAL MOTORS CORP.
