Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press in on the long sides of the lens.
  2. Remove the lens.
  3. Remove the bulb.
  4. Gently pry off the housing.
  5. Disconnect the electrical connectors.
  6. Squeeze the clip tangs together at each clip and push the clip connector up through the housing.

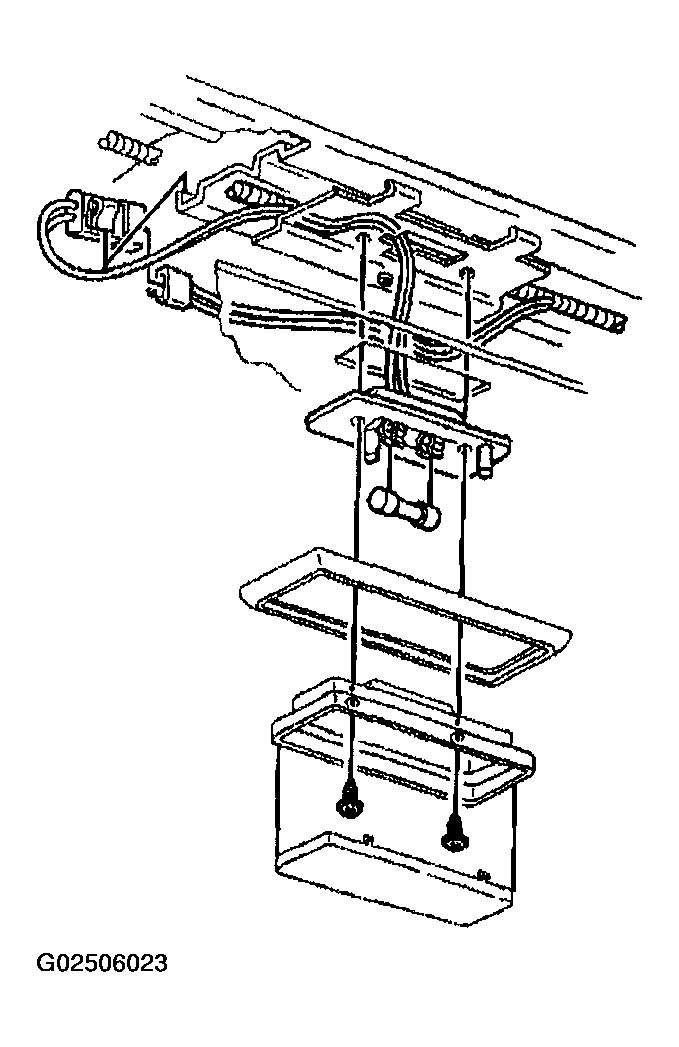

    Fig 1: Dome Lamp
    G02506023Courtesy of GENERAL MOTORS CORP.
