Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the tab on one end of the lens.
  2. Remove the lens by swinging the lens downward.
  3. Remove the bulb from the assembly by pulling the bulb straight down.

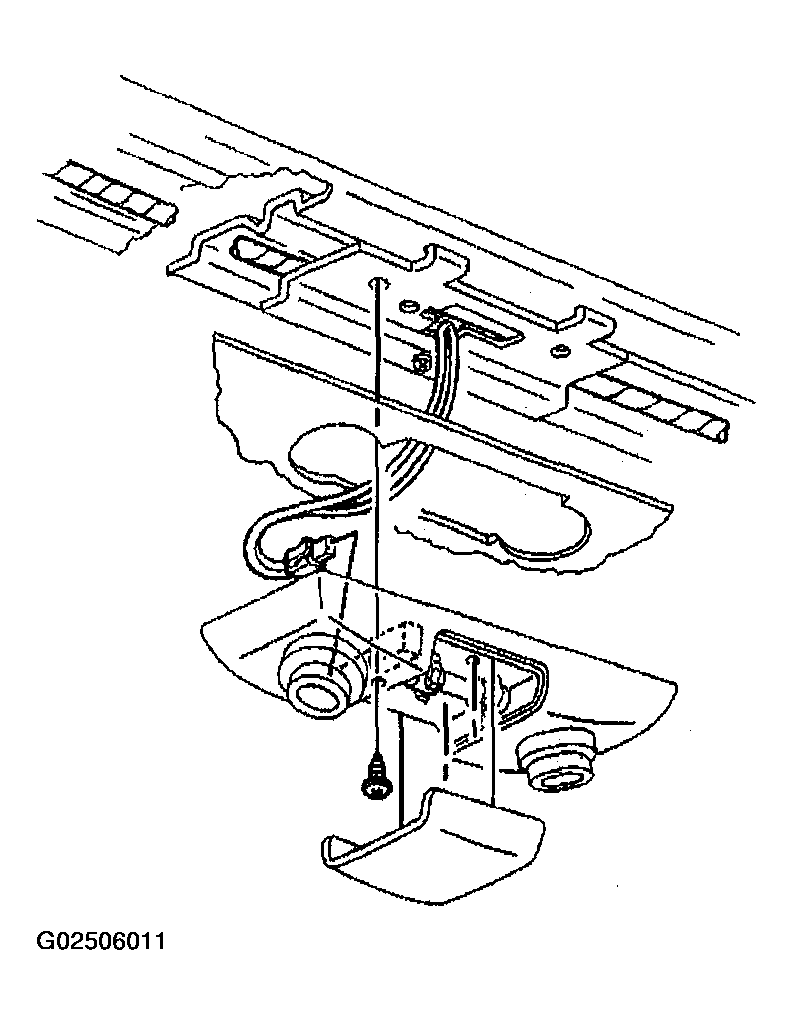

    Fig 1: Dome & Reading Lamp
    G02506011Courtesy of GENERAL MOTORS CORP.
