Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side of the knee bolster.
  2. Remove the cover (4) from the block to expose the DRL daytime running lights relay.
  3. Remove the relay from the block.

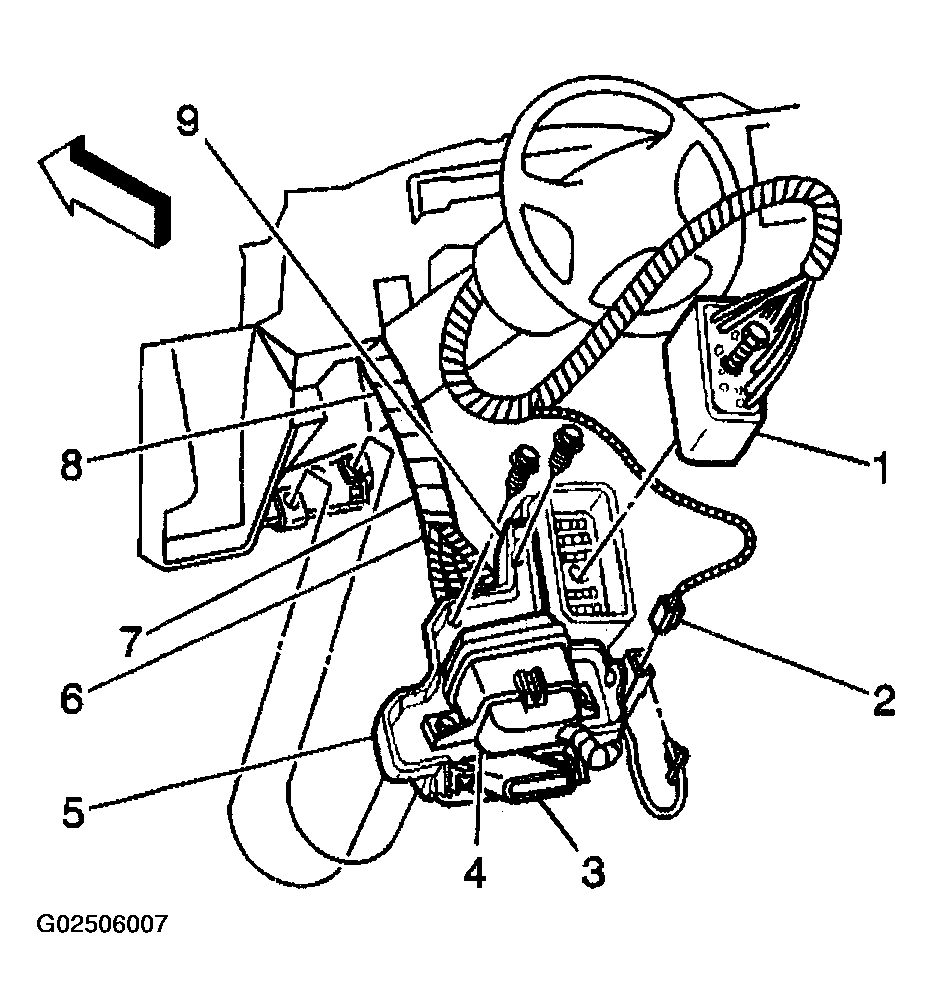

    Fig 1: DRL Relay
    G02506007Courtesy of GENERAL MOTORS CORP.
