Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the body side front lower trim panel.
  2. Remove the screw that retains the diode to the body lock pillar.
  3. Disconnect the electrical connector from the diode.
  4. Remove the diode from the vehicle.

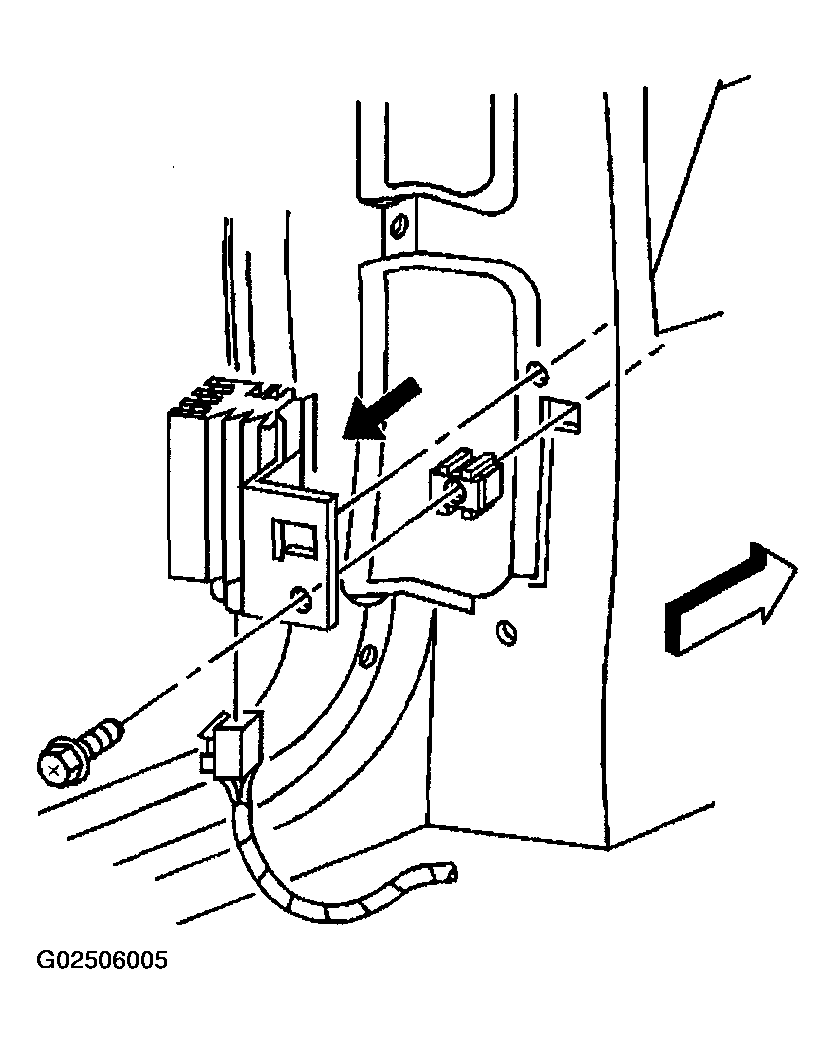

    Fig 1: DRL Diode
    G02506005Courtesy of GENERAL MOTORS CORP.
