Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift upward on the center defogger grille located in center of the dash to expose the DRL photo sensor (1) retainer.
  2. Turn the DRL photo sensor counterclockwise 1/4 turn in order to remove.
  3. Disconnect the electrical connection from the DRL photo sensor (1).

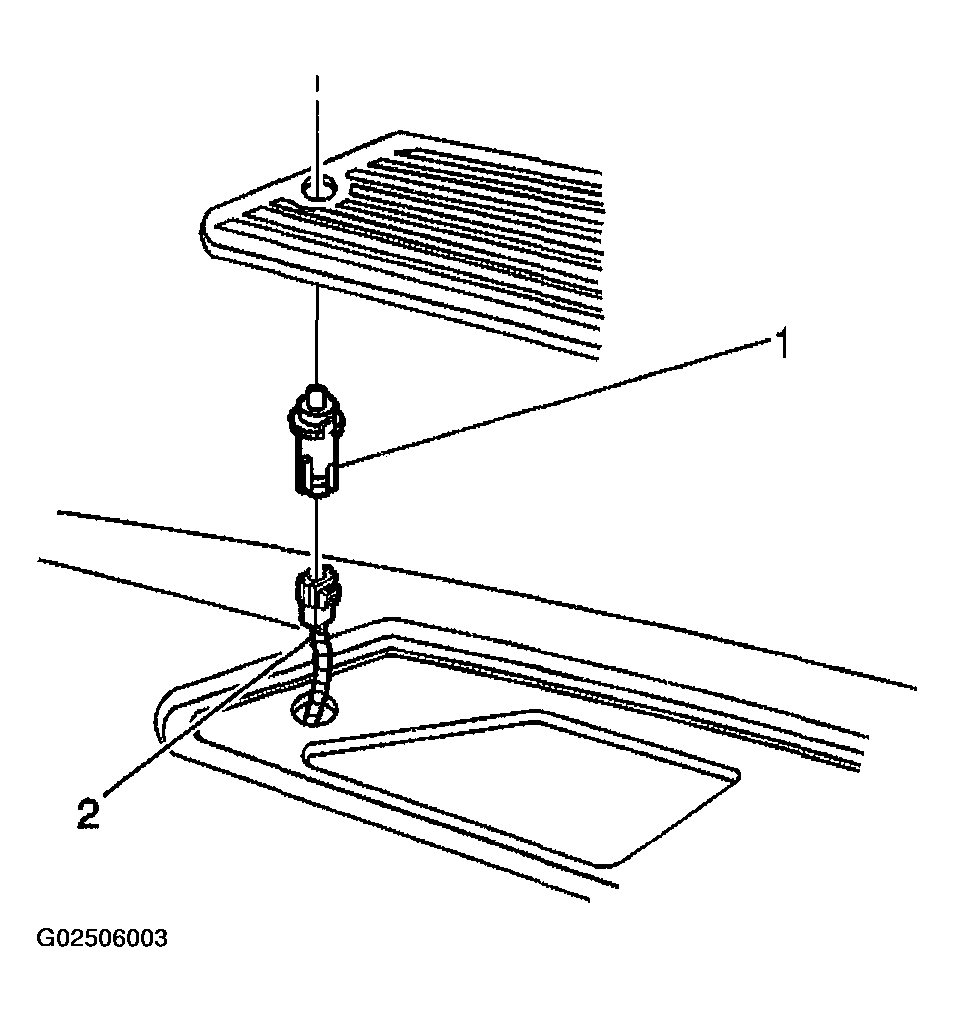

    Fig 1: DRL Ambient Light Sensor
    G02506003Courtesy of GENERAL MOTORS CORP.
