Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently push the lens or reflector toward the front edge of the door.
  2. Gently pry the rear of the lens or reflector away from the door by using a small flat bladed tool.
  3. Pivot the lens or reflector from the door in order to clear the retaining tab at the front edge.
  4. Remove the bulb, (if equipped).
  5. Remove the lens or reflector from the vehicle.

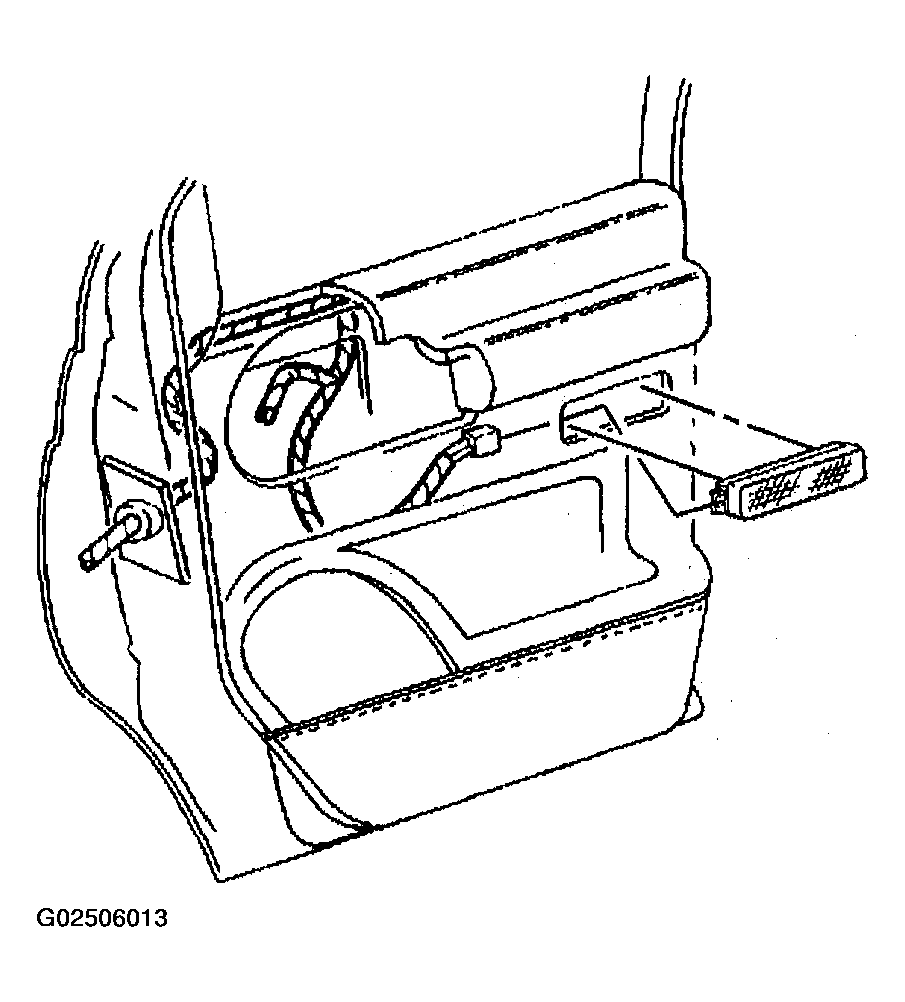

    Fig 1: Door Courtesy Lamp/Reflector
    G02506013Courtesy of GENERAL MOTORS CORP.
