Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew the center of the lamp lens with a suitable flat bladed tool while pressing up on the lamp assembly.
  2. Remove the lamp assembly.
  3. Remove the bulb from the socket.

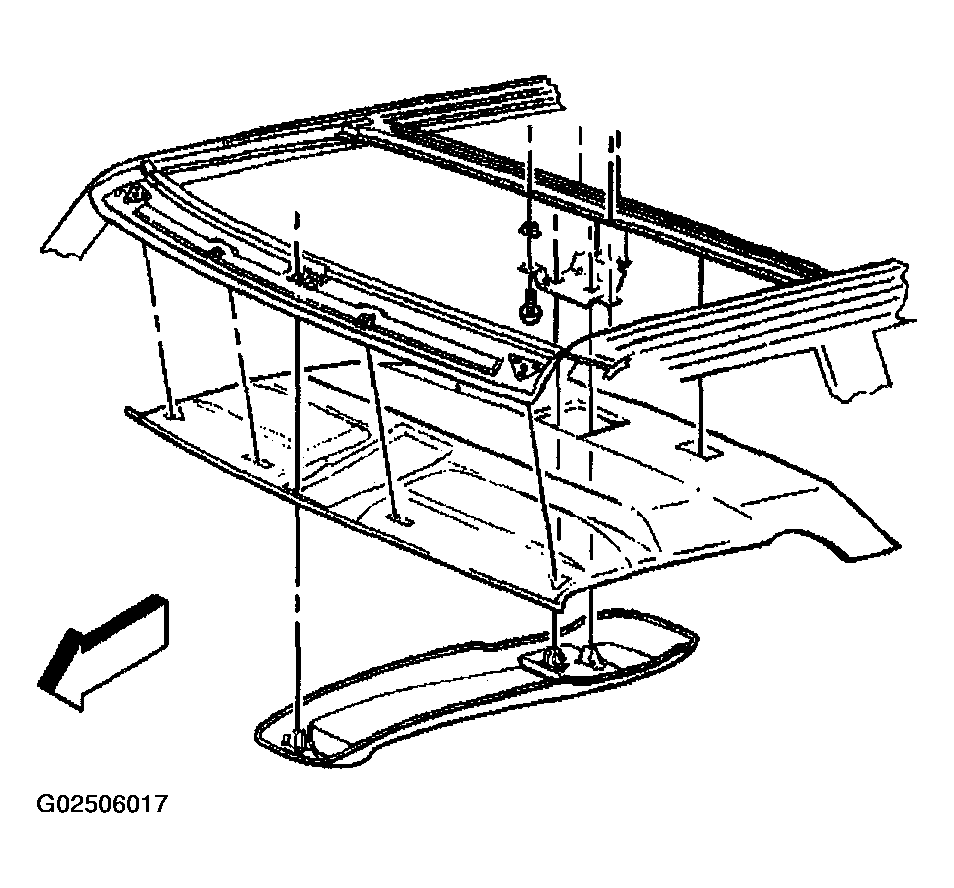

    Fig 1: Overhead Console Overhead Console
    G02506017Courtesy of GENERAL MOTORS CORP.
