Turn Signal Lamps And/Or Indicators Inoperative

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

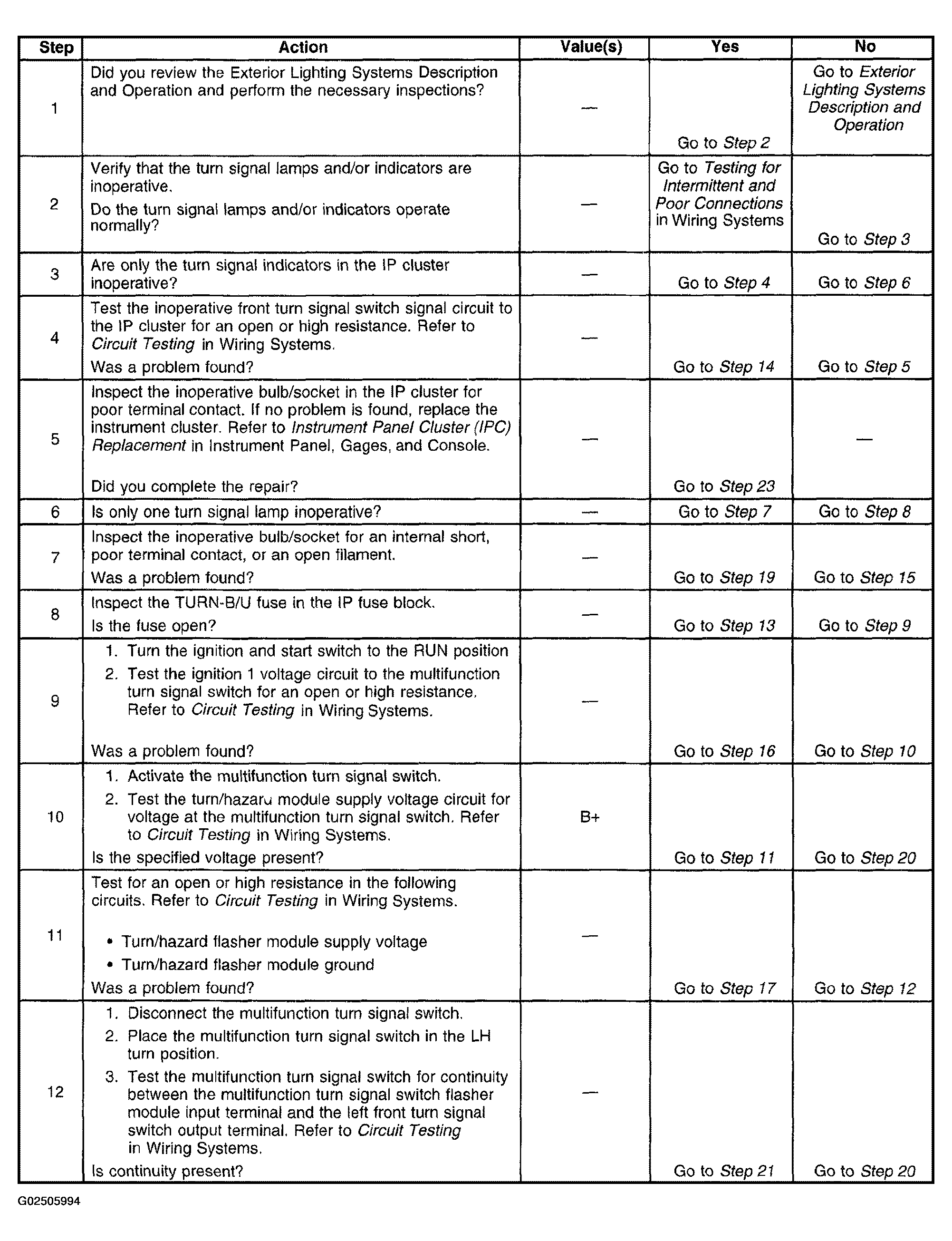

Fig 1: Turn Signal Lamps And/Or Indicators Inoperative Diagnosis (Steps 1-12)

Courtesy of GENERAL MOTORS CORP.

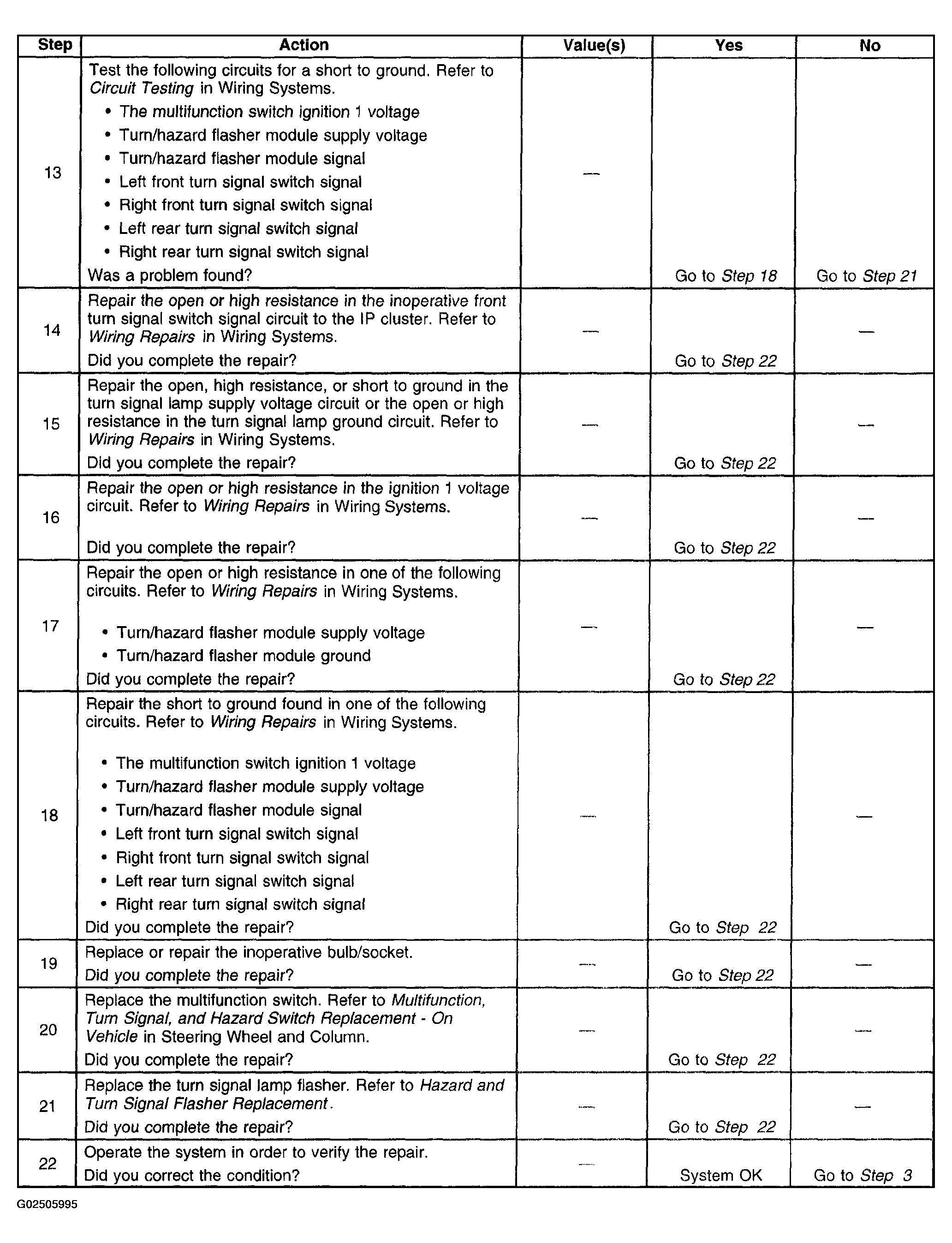

Fig 2: Turn Signal Lamps And/Or Indicators Inoperative Diagnosis (Steps 13-22)

Courtesy of GENERAL MOTORS CORP.
