Stop Lamps Inoperative (Domestic)

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

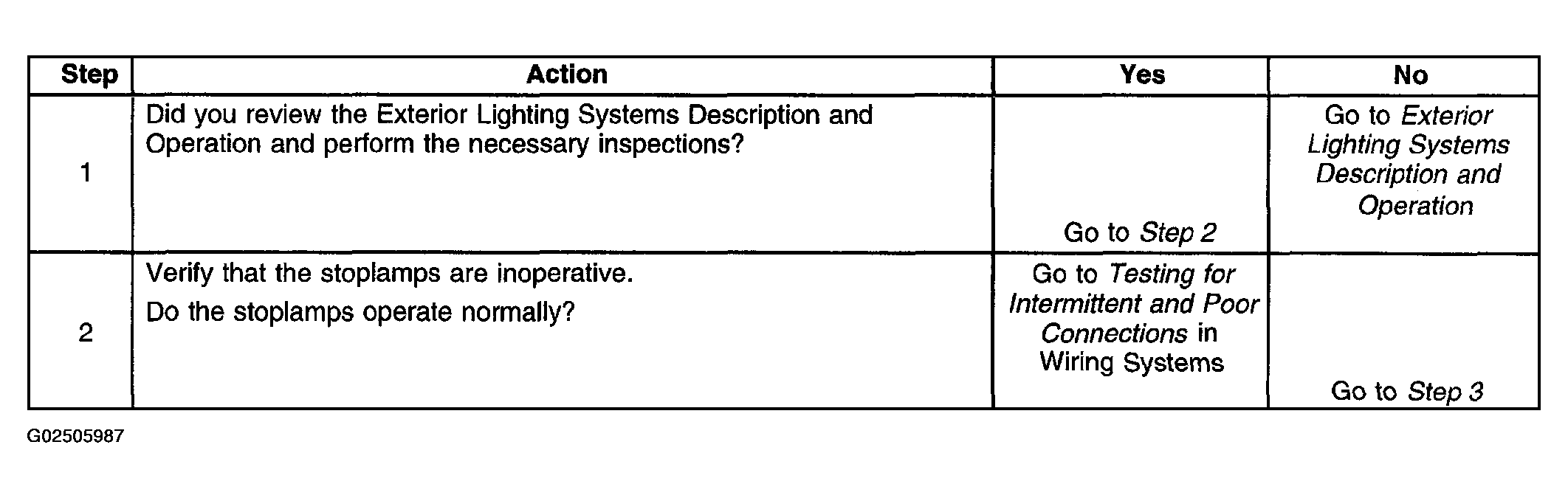

Fig 1: Stop Lamps Inoperative (Domestic) Diagnosis (Steps 1-2)

Courtesy of GENERAL MOTORS CORP.

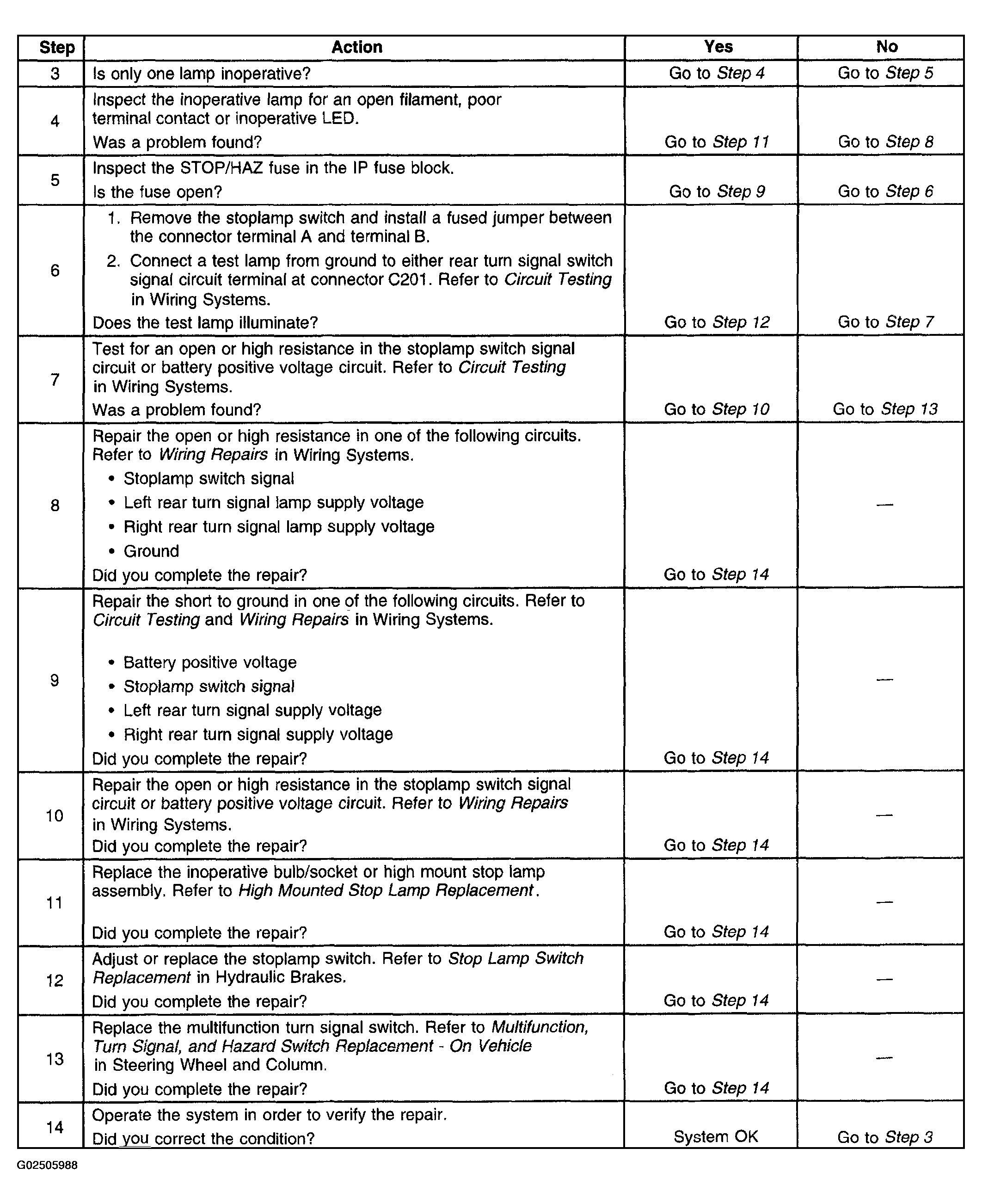

Fig 2: Stop Lamps Inoperative (Domestic) Diagnosis (Steps 3-14)

Courtesy of GENERAL MOTORS CORP.
