Repeater Lamps Inoperative

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

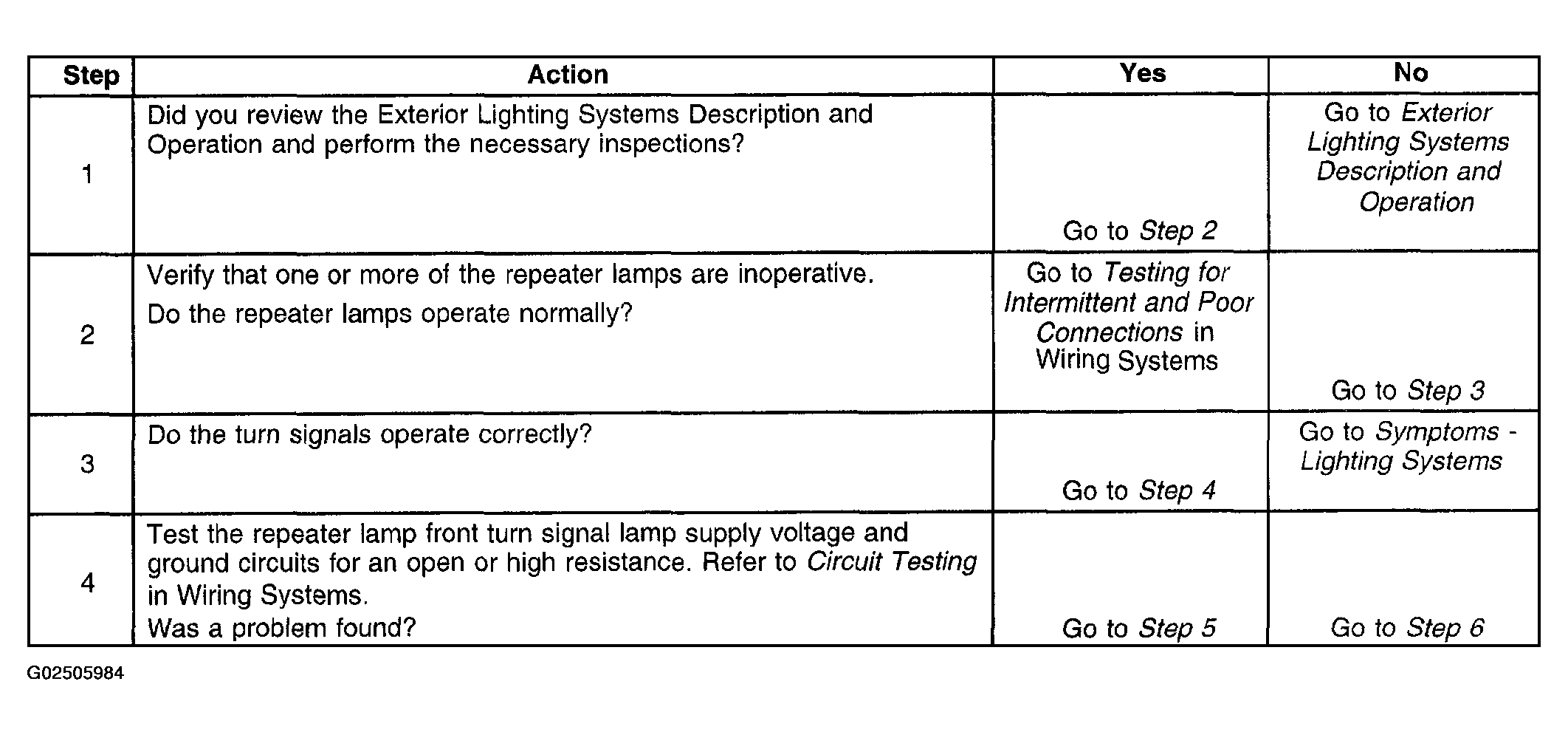

Fig 1: Repeater Lamps Inoperative Diagnosis (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.

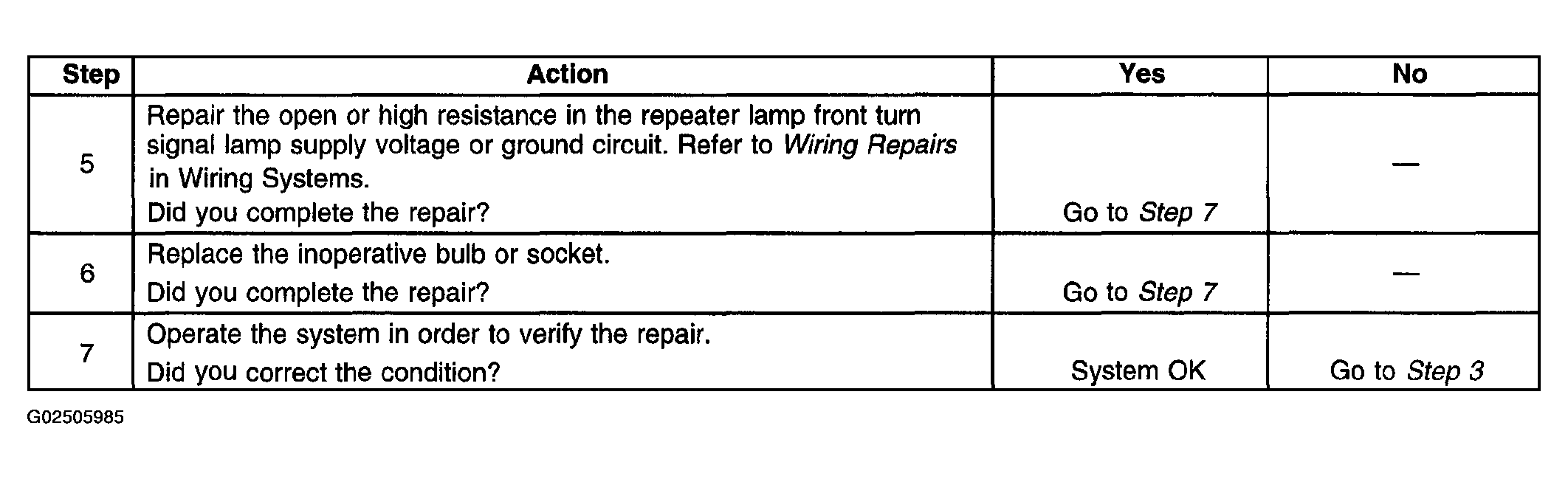

Fig 2: Repeater Lamps Inoperative Diagnosis (Steps 5-7)

Courtesy of GENERAL MOTORS CORP.
