IP Compartment Lamp Always On

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

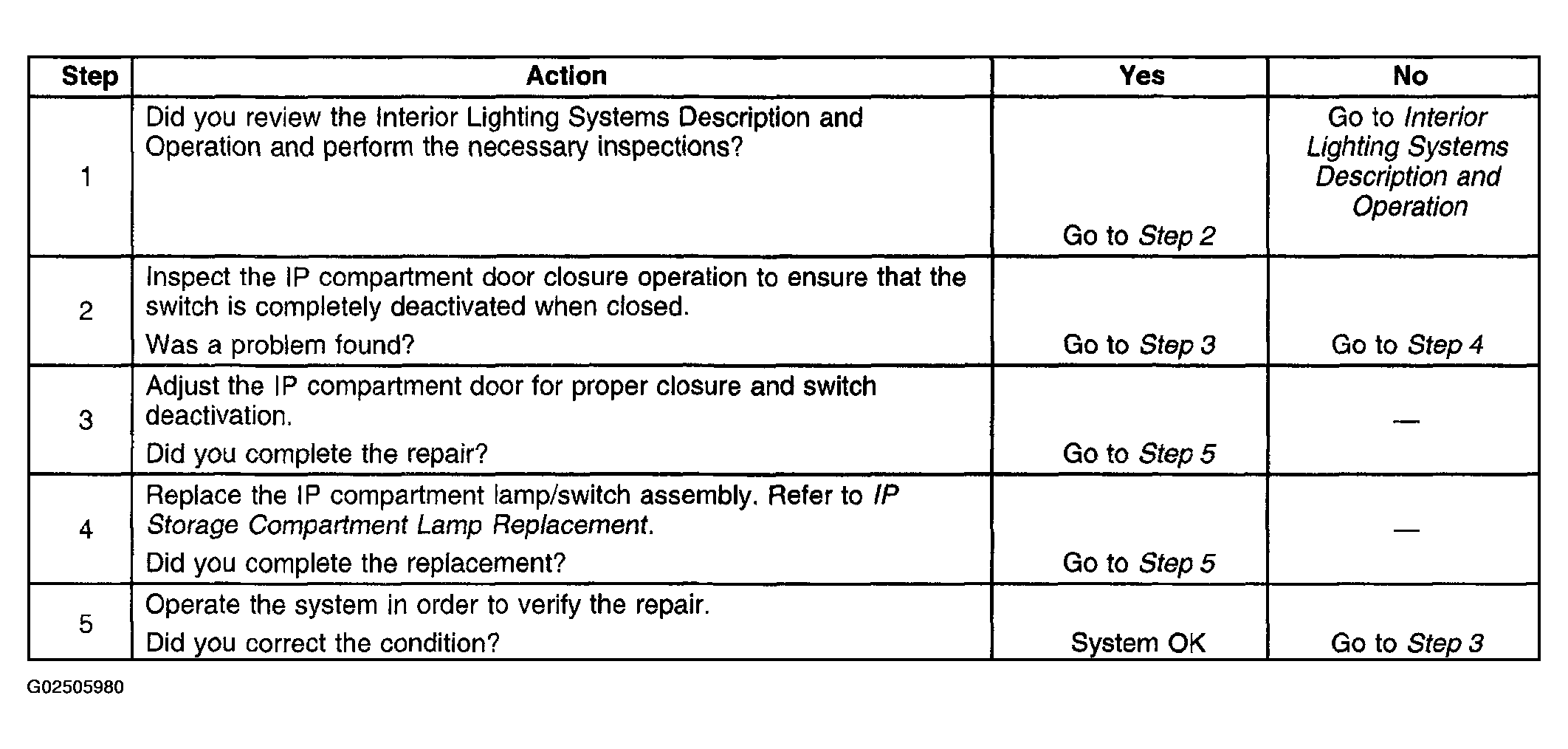

Fig 1: IP Compartment Lamp Always On Diagnosis
G02505980Courtesy of GENERAL MOTORS CORP.
