Headlamps Inoperative In Low Light Conditions

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

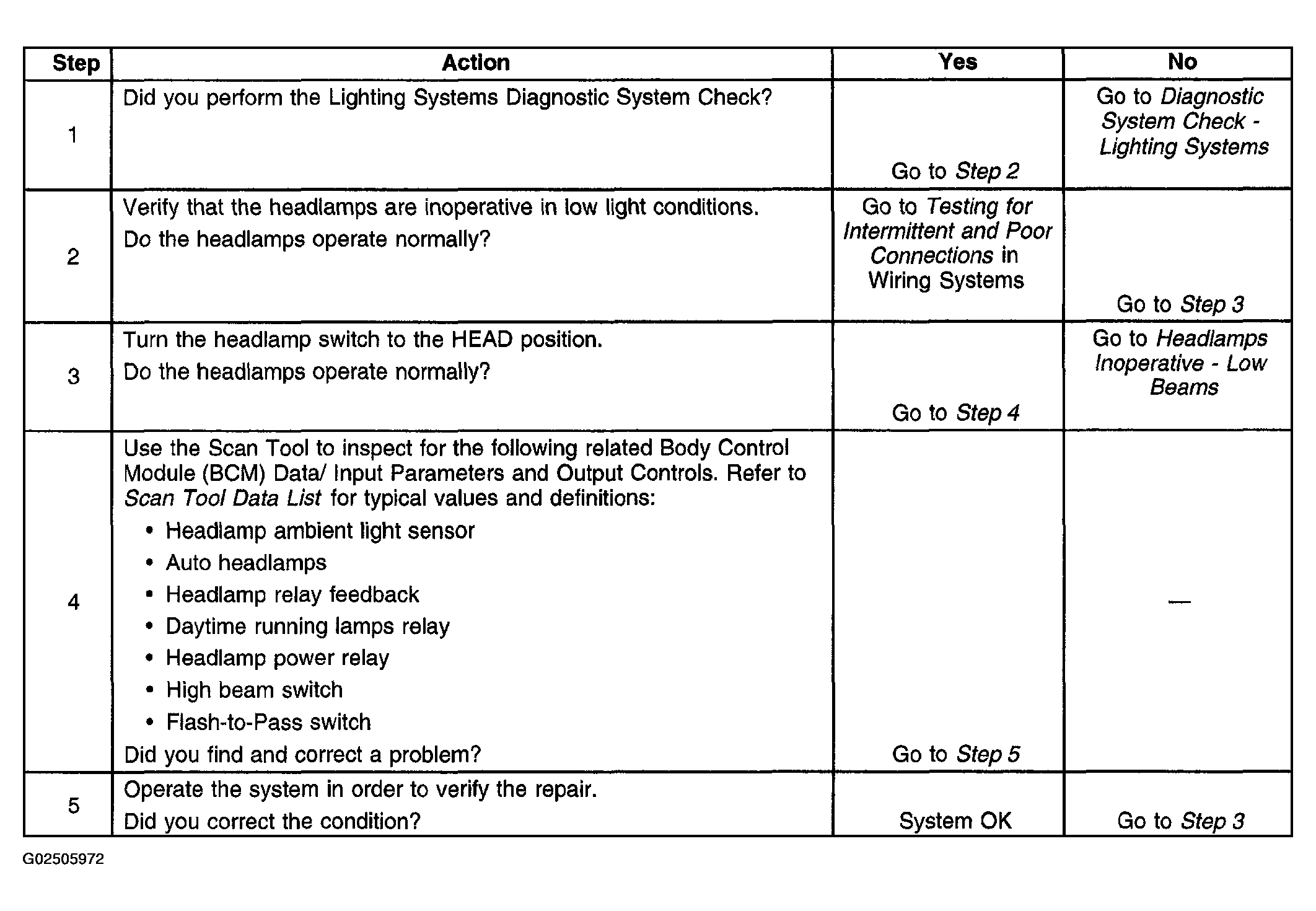

Fig 1: Headlamps Inoperative In Low Light Conditions Diagnosis
G02505972Courtesy of GENERAL MOTORS CORP.
