Headlamps Inoperative - Low & High Beams (Export)

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Headlamps Inoperative - Low & High Beams (Export) Diagnosis (Steps 1-11)

Courtesy of GENERAL MOTORS CORP.

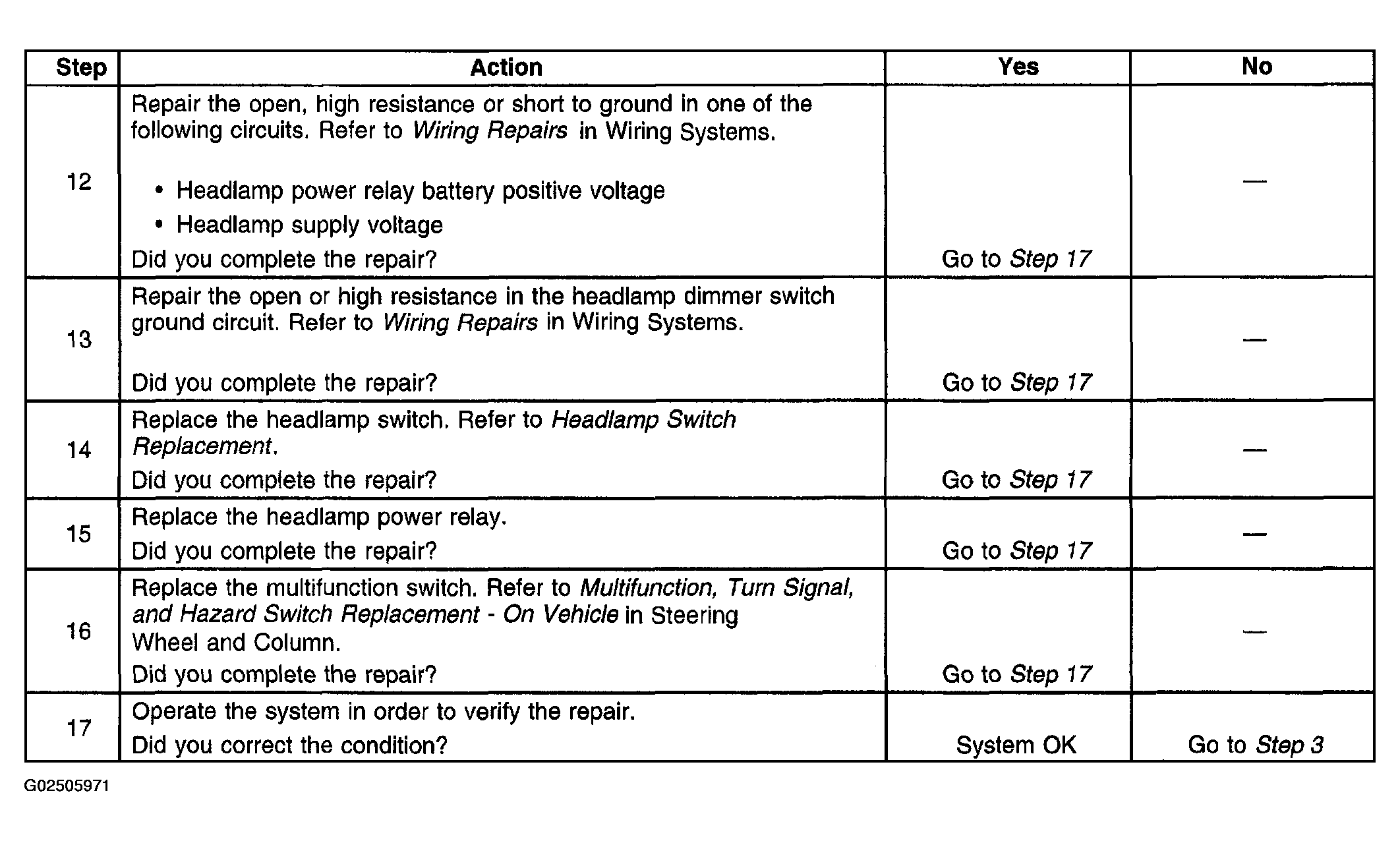

Fig 2: Headlamps Inoperative - Low & High Beams (Export) Diagnosis (Steps 12-17)

Courtesy of GENERAL MOTORS CORP.
