Courtesy Lamps Inoperative

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

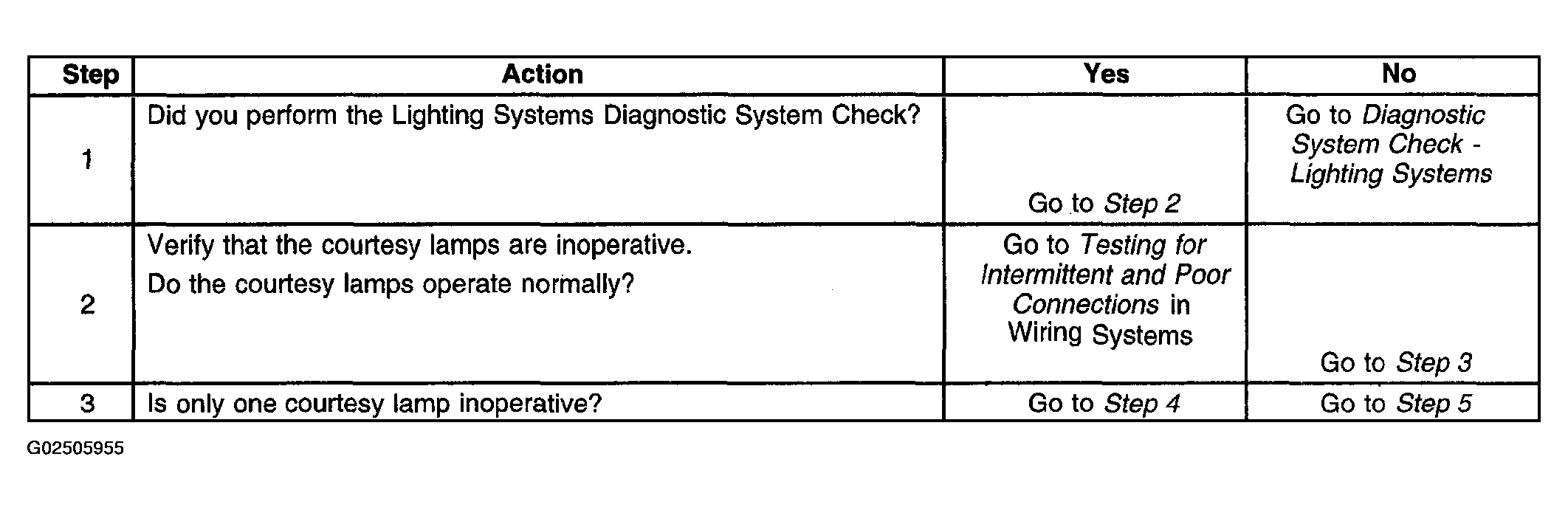

Fig 1: Courtesy Lamps Inoperative Diagnosis (Steps 1-3)

Courtesy of GENERAL MOTORS CORP.

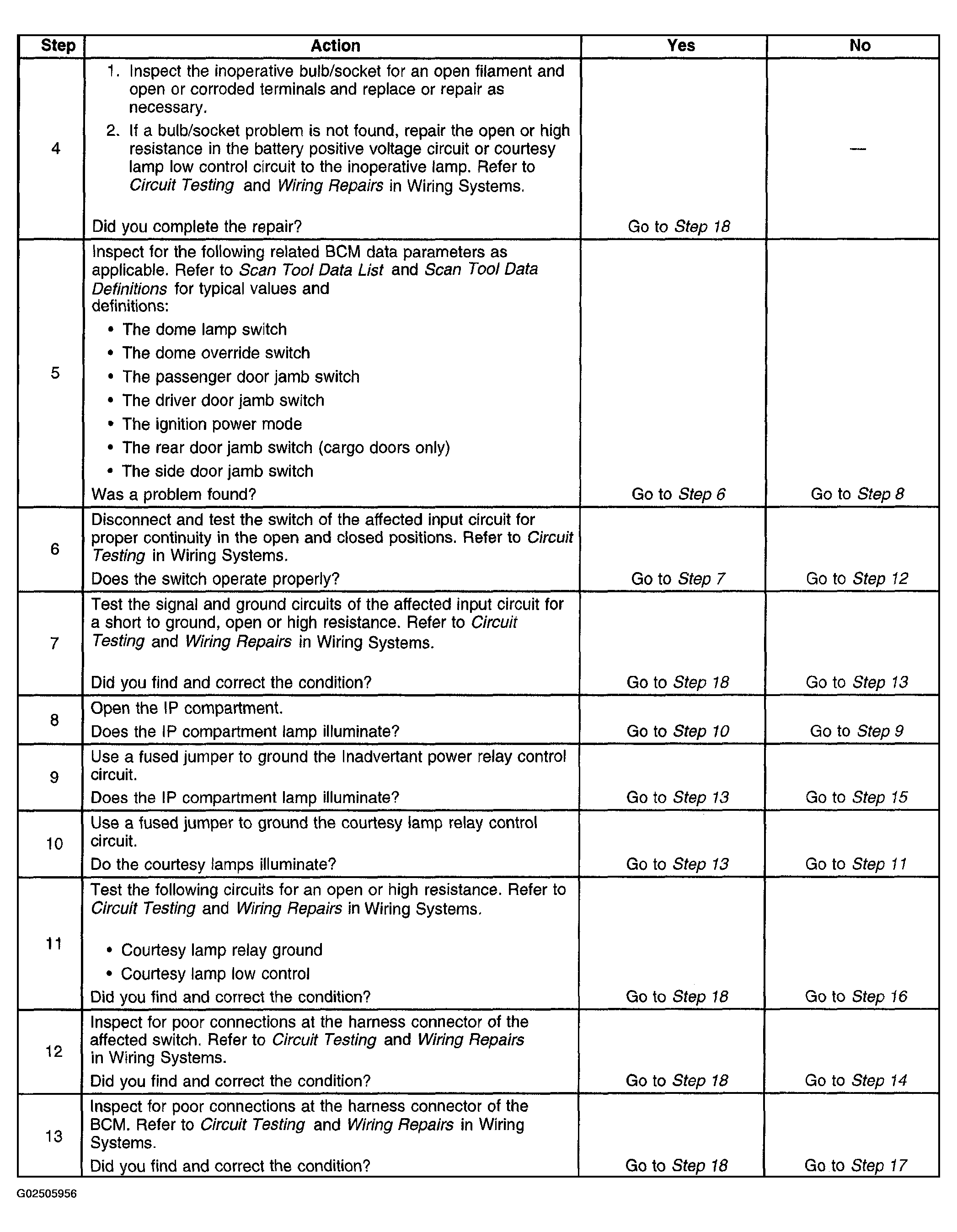

Fig 2: Courtesy Lamps Inoperative Diagnosis (Steps 4-13)

Courtesy of GENERAL MOTORS CORP.

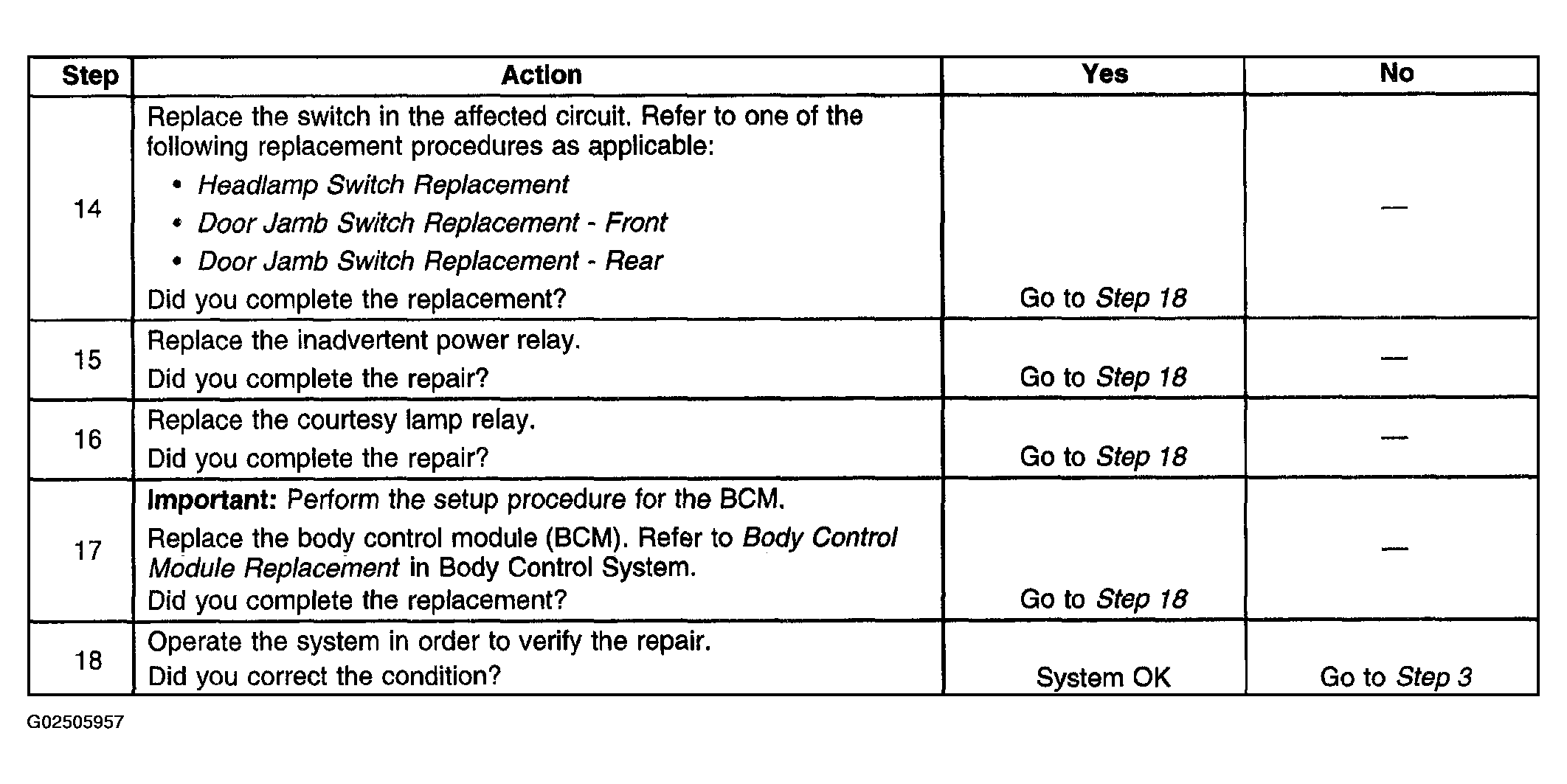

Fig 3: Courtesy Lamps Inoperative Diagnosis (Steps 14-18)

Courtesy of GENERAL MOTORS CORP.
