Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the coolant to a level below the thermostat. Refer to Draining & Filling Cooling System .
  2. Remove the air cleaner assembly.
  3. Disconnect the ground lead from the coolant outlet.
  4. Remove the bolt/stud and the bolt on the coolant outlet.
  5. Remove the coolant outlet.

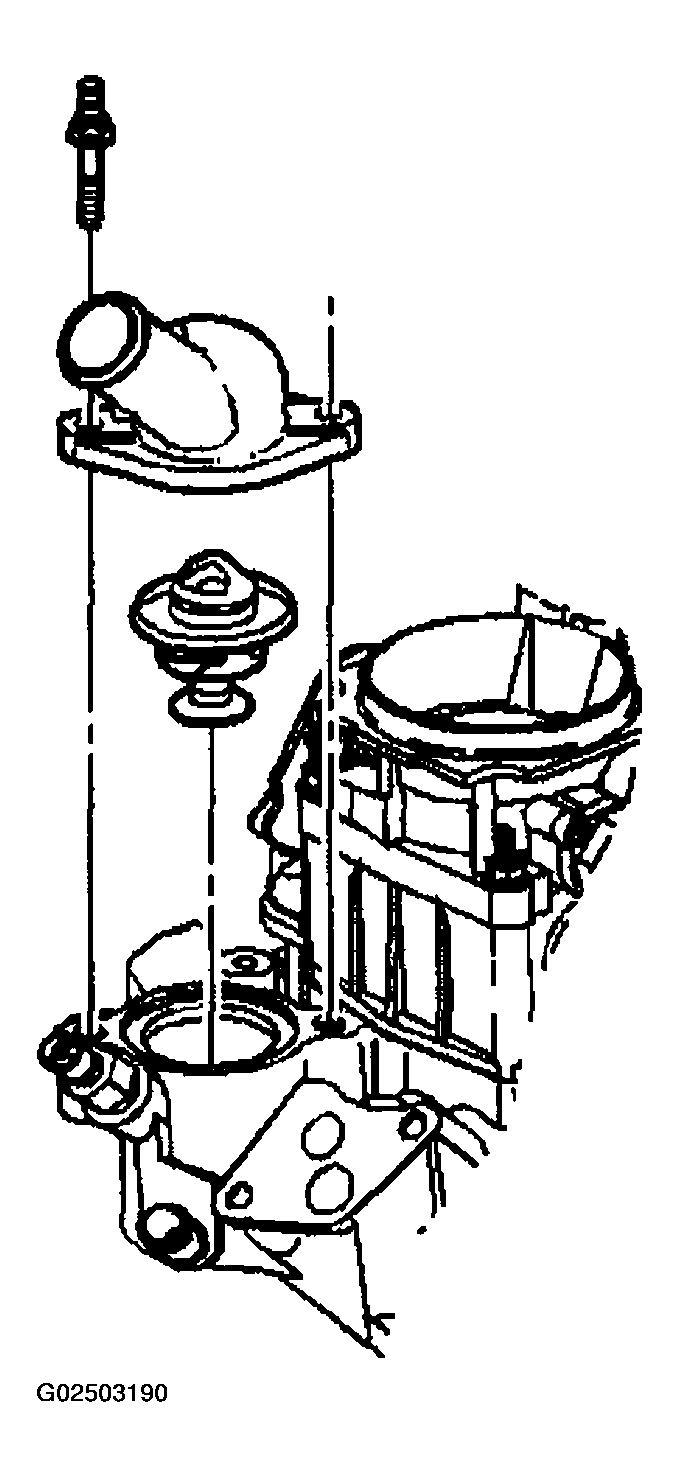

    6. Fig 1: Coolant Outlet & Thermostat
    G02503190Courtesy of GENERAL MOTORS CORP.
  6. Remove the thermostat.
  7. Clean all of the parts and the sealing surfaces.
