Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant. Refer to Draining & Filling Cooling System .
  2. Remove the air cleaner assembly.
  3. Reposition the radiator hose clamp.
  4. Remove the outlet hose from the radiator.
  5. Raise and support the vehicle.
  6. Reposition the outlet hose clamp from the water pump.
  7. Remove the outlet hose from the water pump.

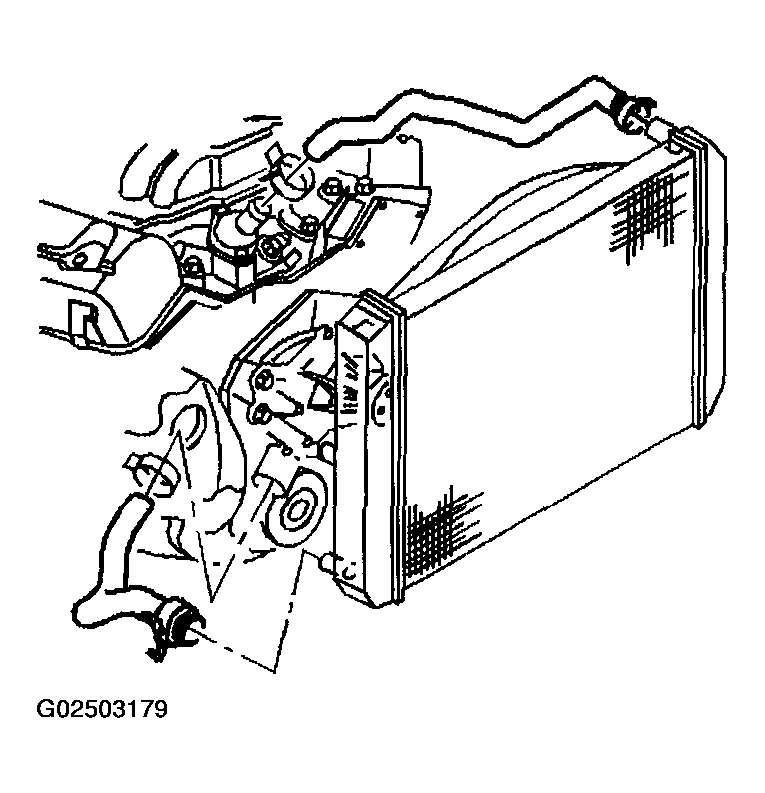

    Fig 1: Water Pump Outlet Hose
    G02503179Courtesy of GENERAL MOTORS CORP.
