Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the coolant from the radiator to a level below the hose being removed. Refer to Draining & Filling Cooling System .
  2. Remove the air cleaner assembly.
  3. Reposition the radiator hose clamp.
  4. Remove the inlet hose from the radiator.
  5. Reposition the clamp from the thermostat housing.
  6. Remove the inlet hose from the thermostat housing.

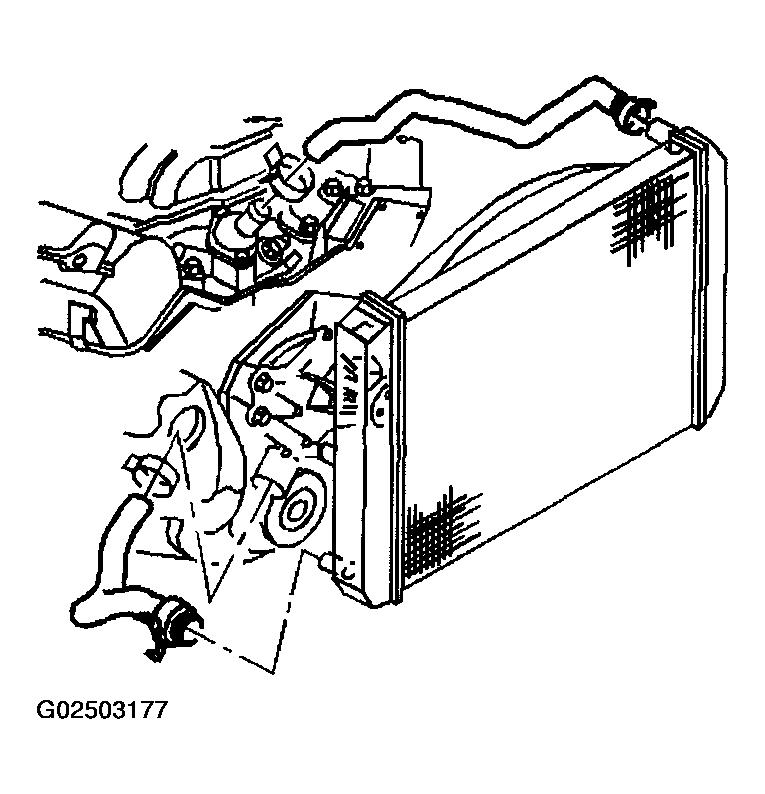

    Fig 1: Inlet Hose From Thermostat Housing
    G02503177Courtesy of GENERAL MOTORS CORP.
