Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly.
  2. Remove the upper fan shroud bolts.
  3. Remove the upper fan shroud.

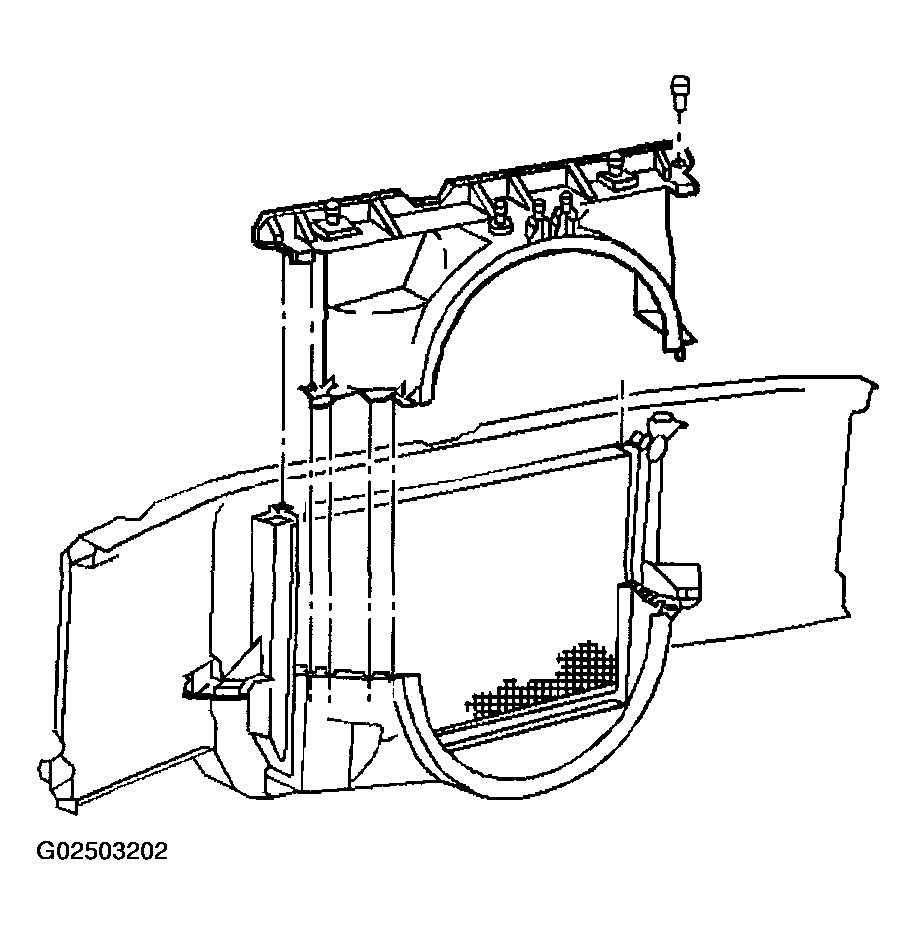

    Fig 1: Upper Fan Shroud
    G02503202Courtesy of GENERAL MOTORS CORP.
