Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper fan shroud. Refer to Fan Shroud Replacement - Upper .
  2. Remove the fan clutch using the J 41240  .
  3. Remove the fan and fan blade clutch assembly from the vehicle.
  4. Remove the four bolts retaining the fan blade to the fan blade clutch.
  5. Remove the fan from the fan blade clutch.

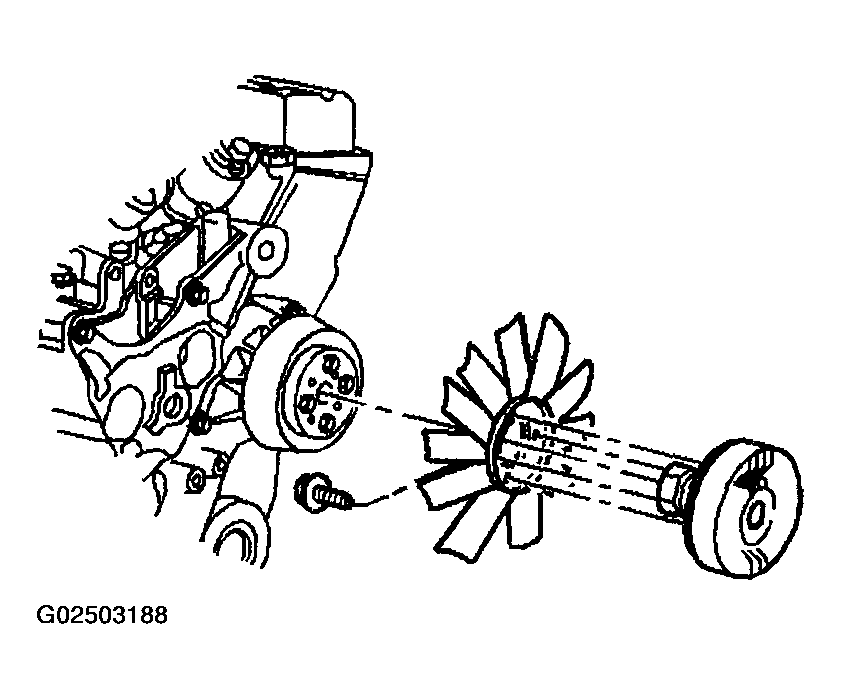

    Fig 1: Fan Clutch
    G02503188Courtesy of GENERAL MOTORS CORP.
