Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the oil filter adapter.
  2. Disconnect the oil cooler lines from the oil filter adapter assembly.

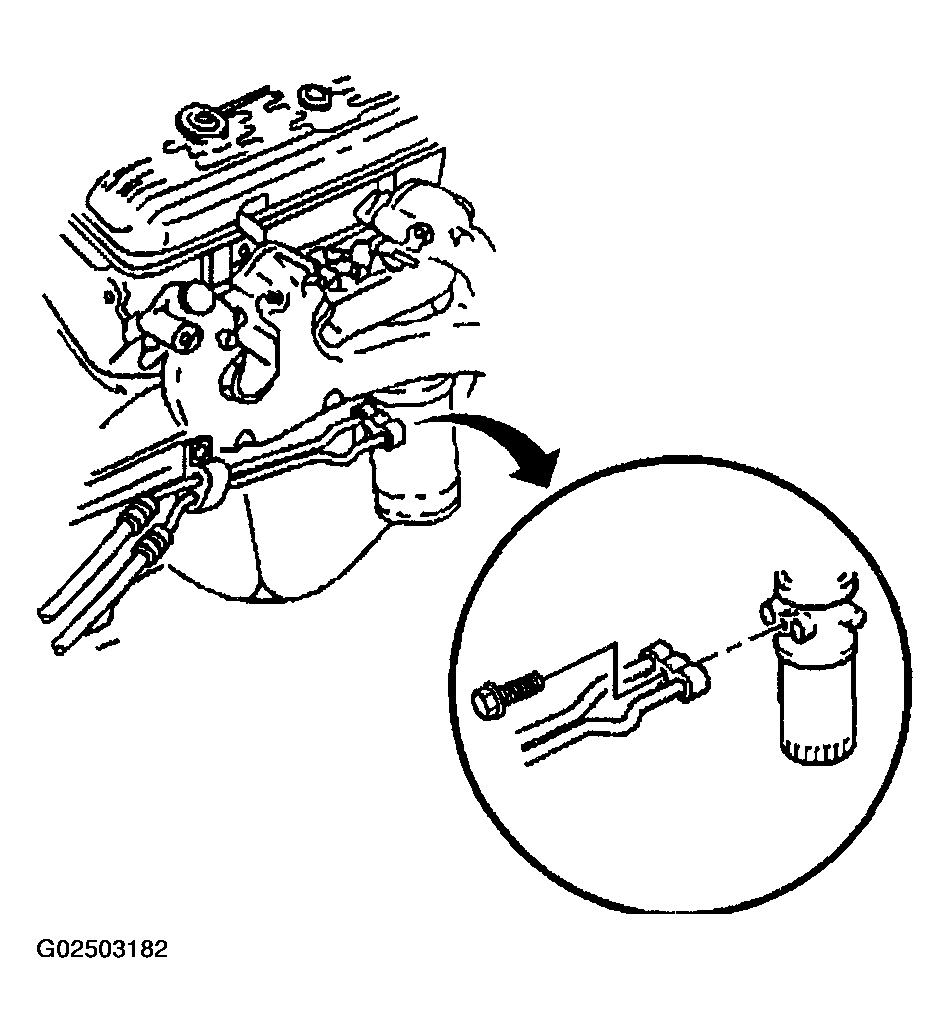

    Fig 1: Oil Cooler Lines At Oil Filter Adapter Assembly
    G02503182Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil cooler line to engine clip bolt.
  4. Remove the oil cooler lines from the engine clip.

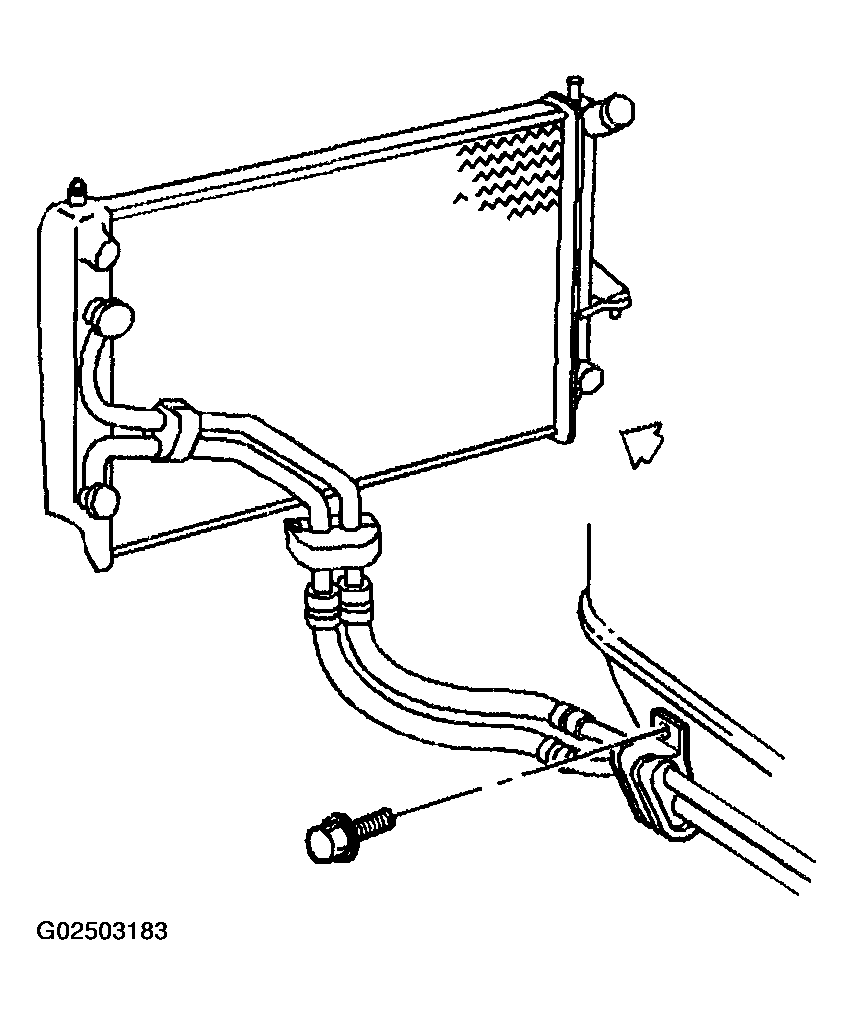

    Fig 2: Oil Cooler Lines To Engine Clip
    G02503183Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the oil cooler lines from the radiator connector fitting by doing the following:
    • Use a small pick-type tool or a screwdriver to release one of the open ends of the retaining clip from the connector fitting.
    • Disconnect the retaining clip from the connector fitting.
    • Discard the clips.
  6. Remove the engine oil cooler lines.
  7. Clean all of the components with a suitable solvent. Dry the components with compressed air.
  8. Inspect the following for damage or distortion:
    • The connector fittings
    • The connectors
    • The engine oil cooler lines

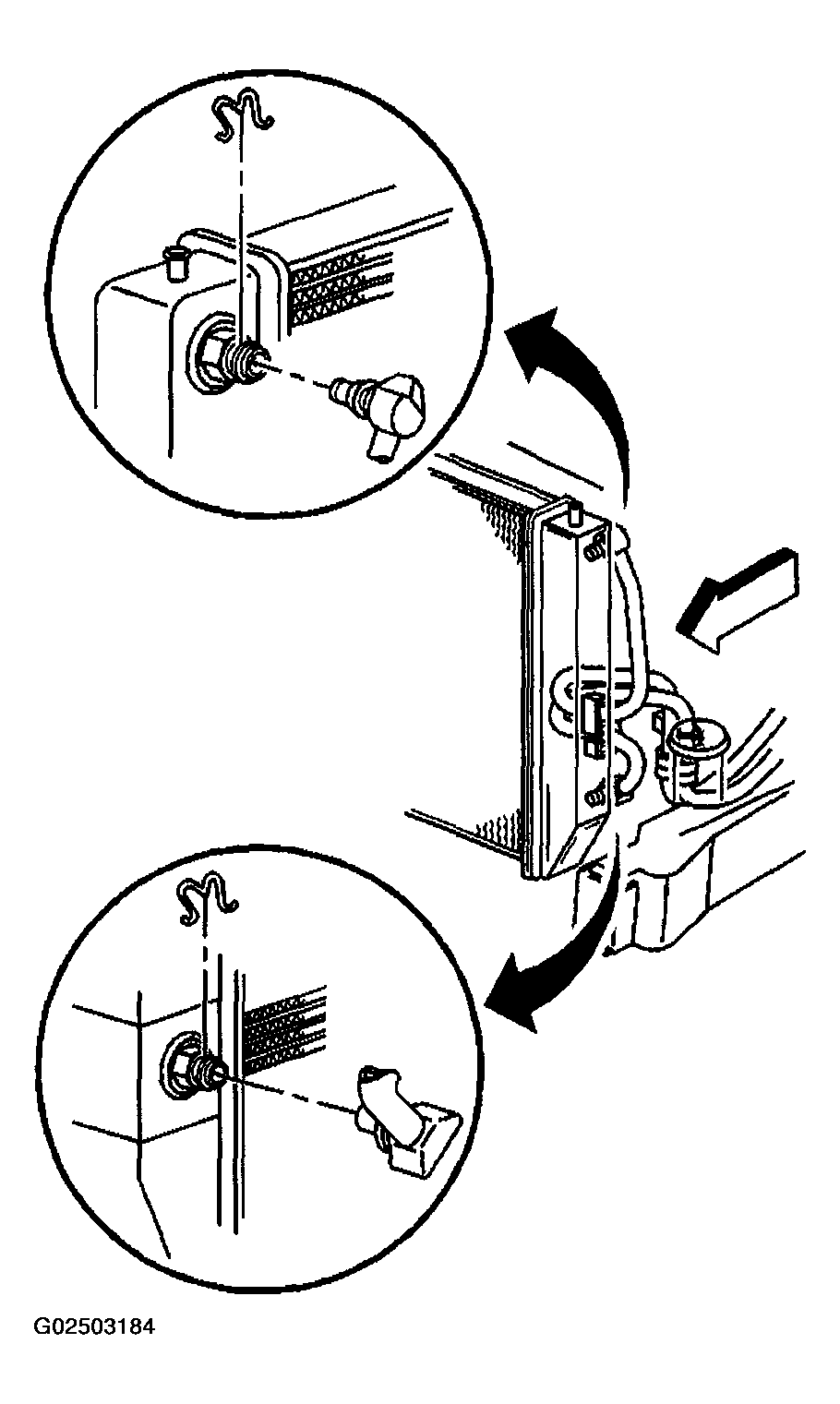

      • Fig 3: Engine Oil Cooler Lines
      G02503184Courtesy of GENERAL MOTORS CORP.
