Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the coolant recovery reservoir hose from the from the radiator filler neck.
  2. Remove the two reservoir retainers.

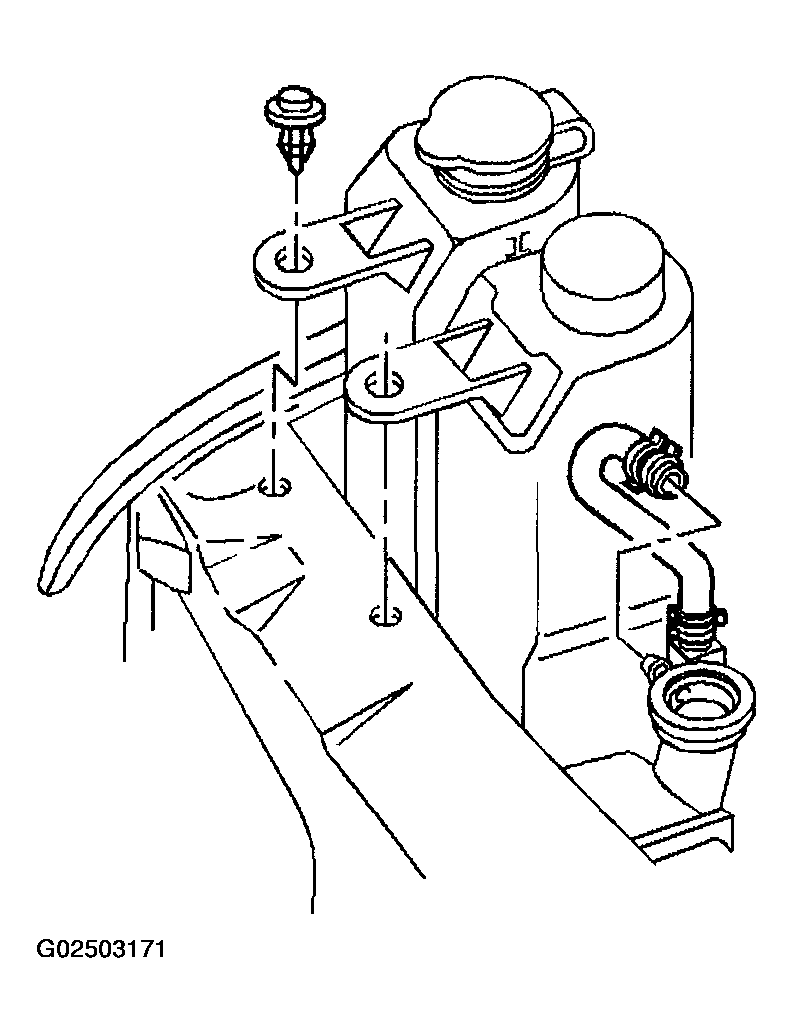

    Fig 1: Reservoir Retainers
    G02503171Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connectors from the washer pumps.

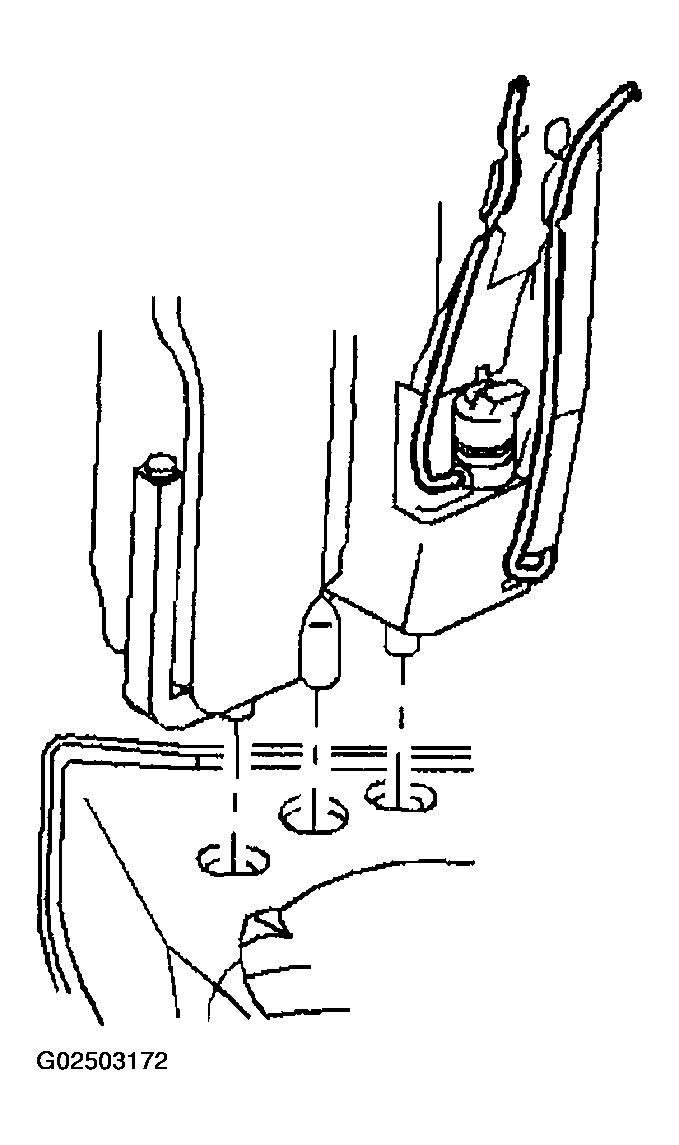

    4. Fig 2: Washer Pump Electrical Connectors
    G02503172Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the washer hose(s) from the washer pump(s).
  5. Remove the coolant recovery reservoir/windshield washer assembly.
  6. Drain the coolant in the reservoir.
