Loss Of Coolant

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

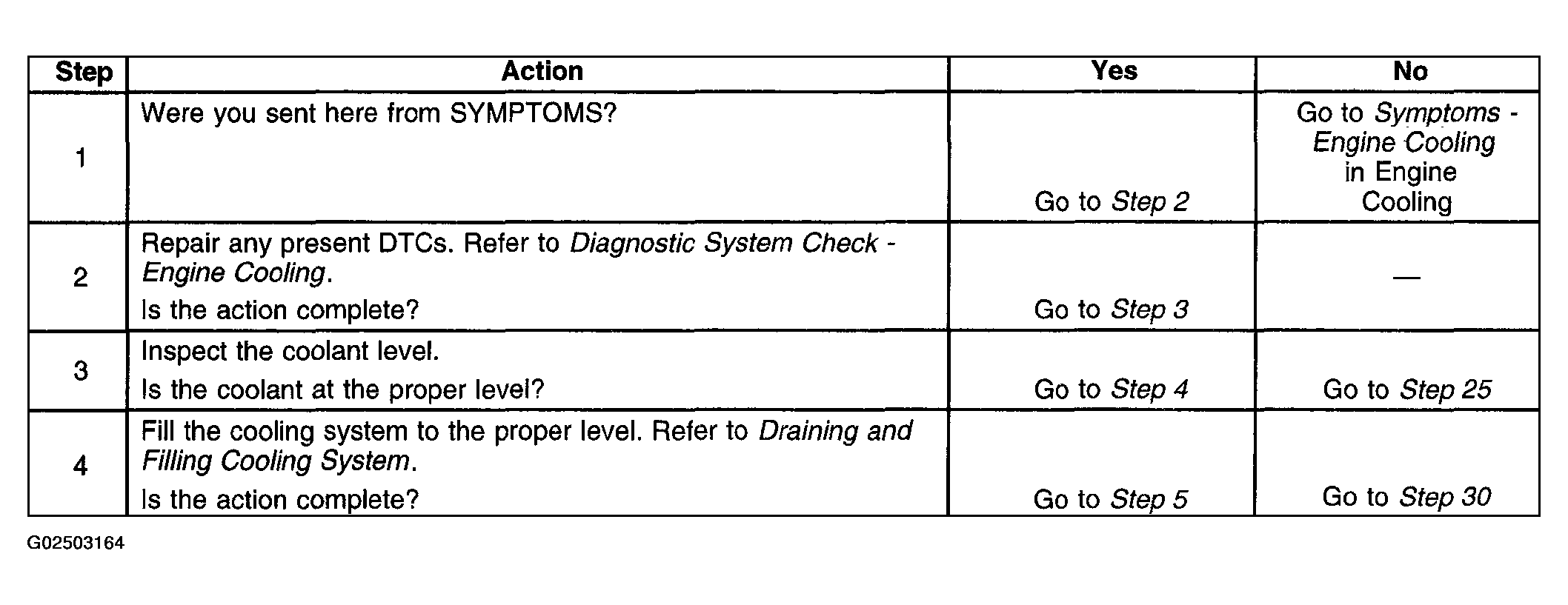

Fig 1: Loss Of Coolant Diagnosis (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.

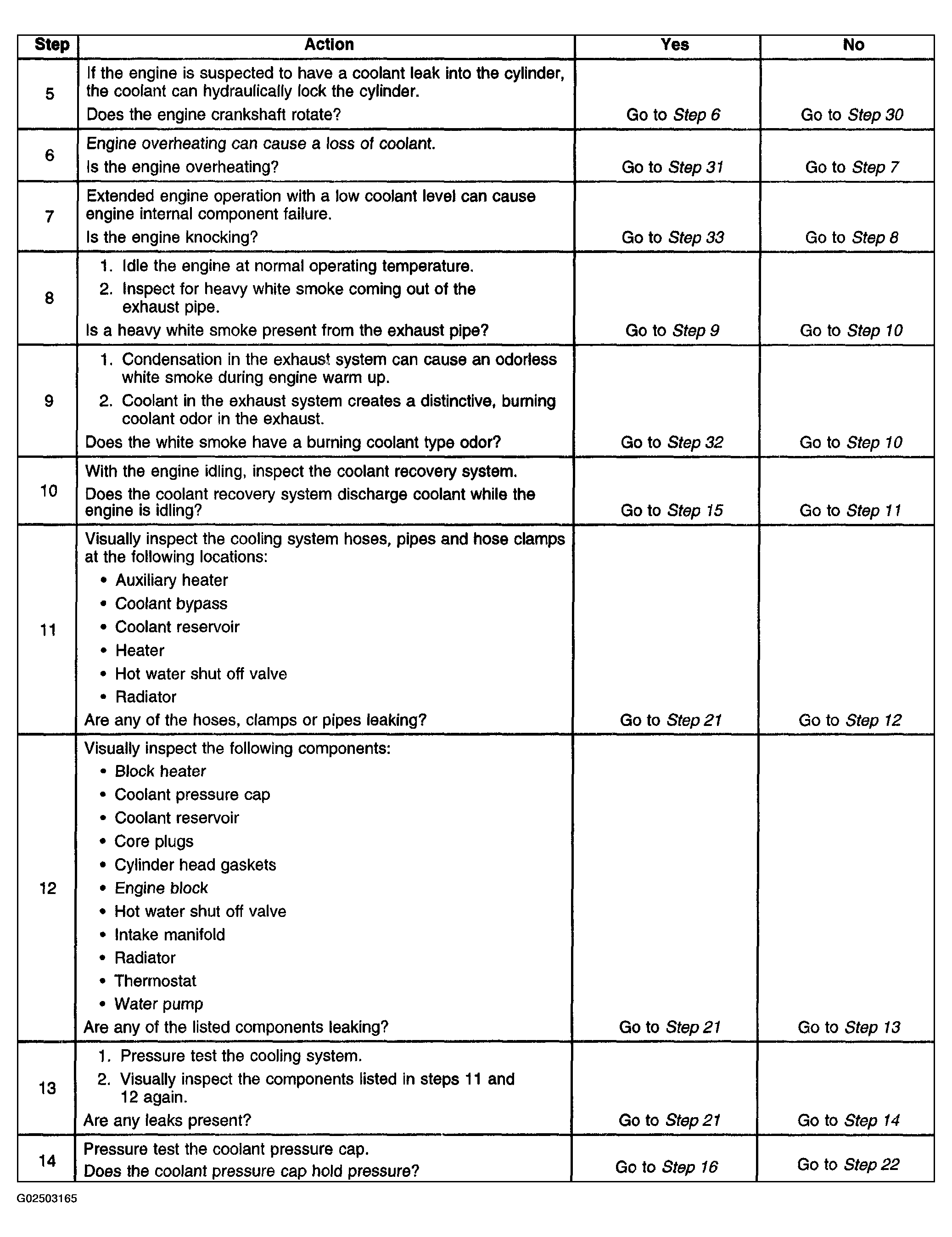

Fig 2: Loss Of Coolant Diagnosis (Steps 5-14)

Courtesy of GENERAL MOTORS CORP.

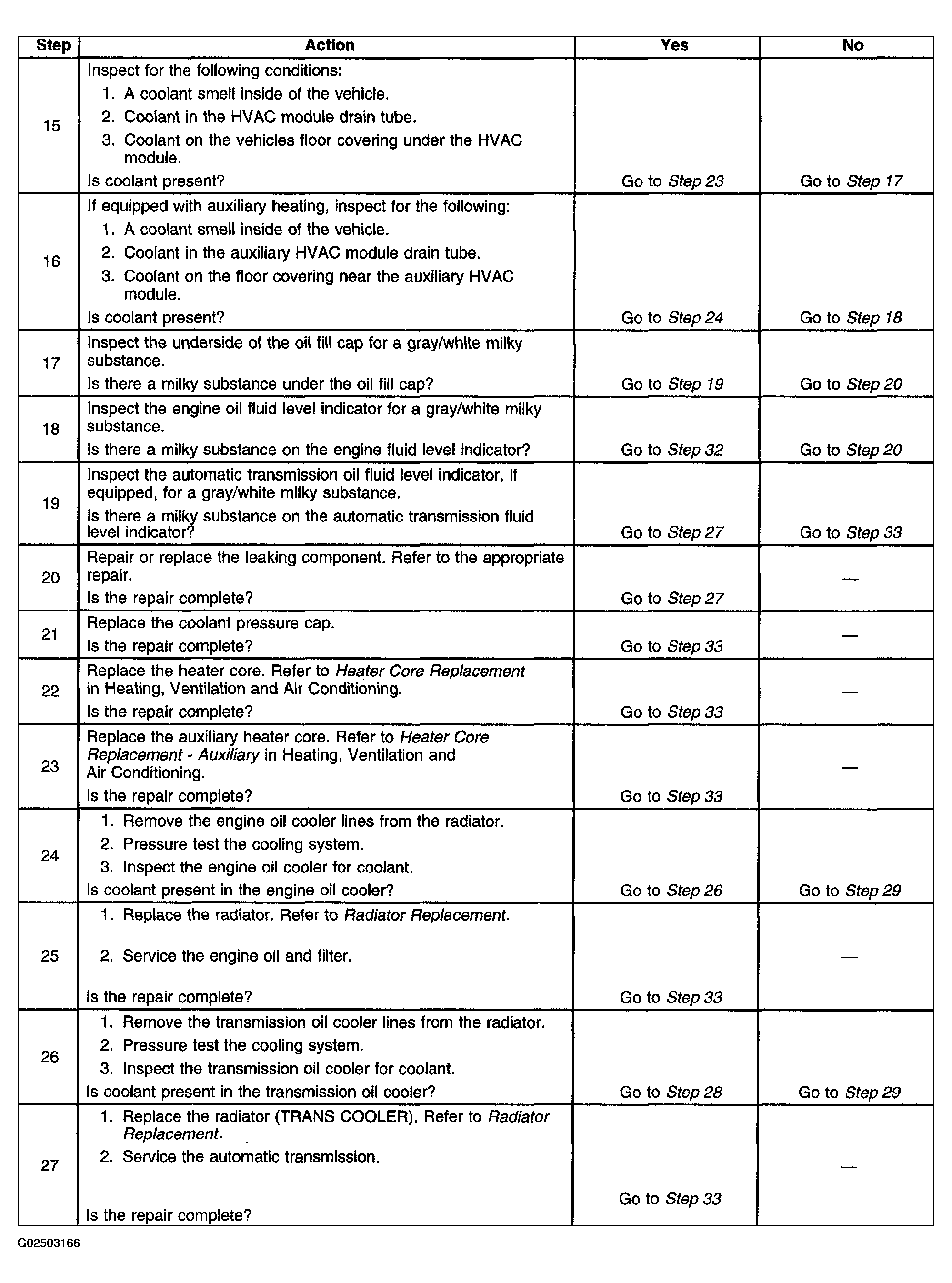

Fig 3: Loss Of Coolant Diagnosis (Steps 15-27)

Courtesy of GENERAL MOTORS CORP.

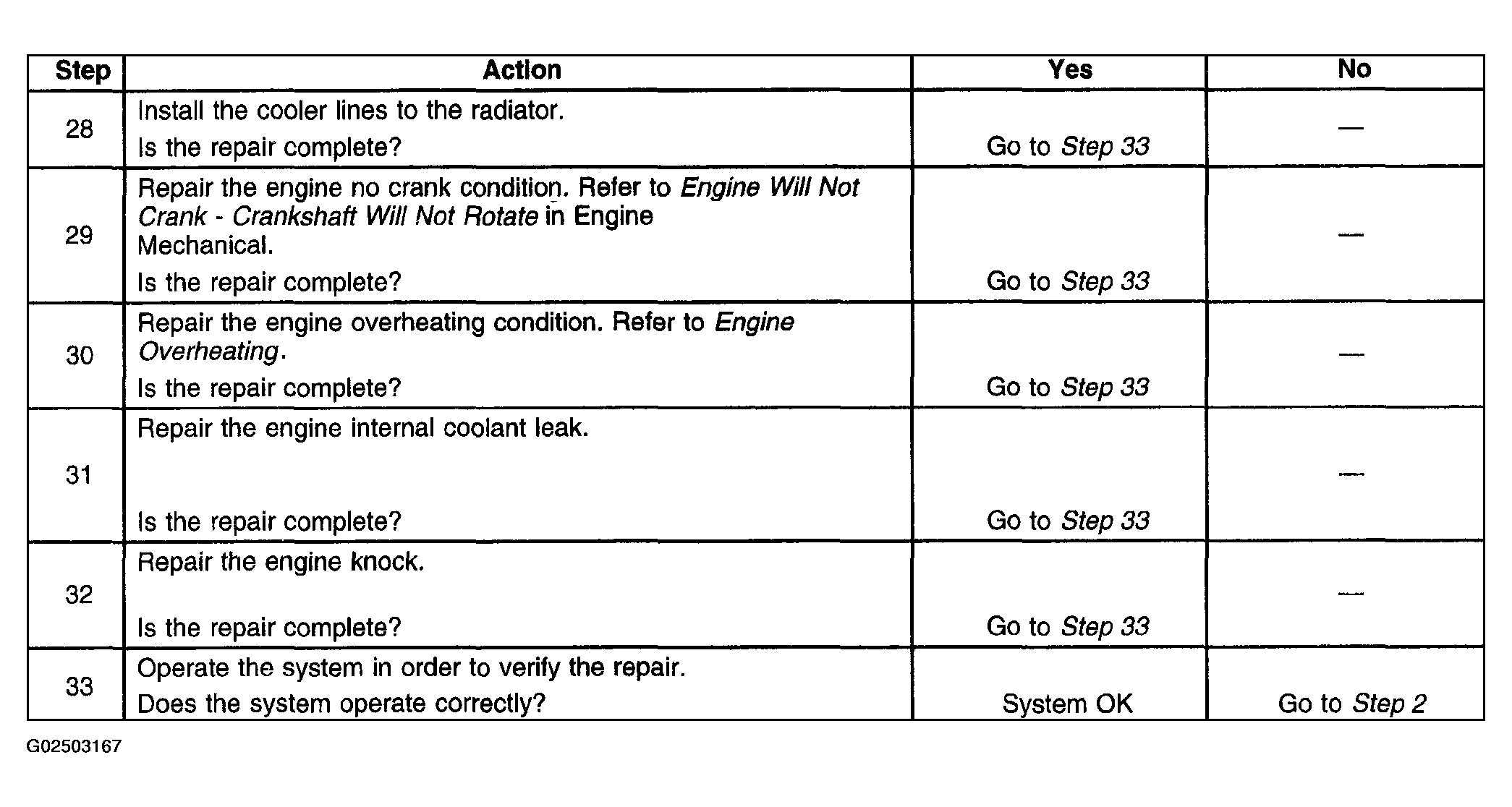

Fig 4: Loss Of Coolant Diagnosis (Steps 28-33)

Courtesy of GENERAL MOTORS CORP.
