Installation Procedure
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before Installing the wheels, remove any buildup of corrosion on the wheel mounting surface and brake drum or disc mounting surface by scraping and wire brushing. Installing wheels with poor metal-to-metal contact at the mounting surfaces can cause wheel nuts to loosen. This can cause a wheel to come off when the vehicle is moving, causing loss of control and possibly personal Injury.
NOTE:
A torque wrench or J 39544 must be used to ensure that wheel nuts are tightened to specification. Never use lubricants or penetrating fluids on wheel stud, nuts, or mounting surfaces, as this can raise the actual torque on the nut without a corresponding torque reading on the torque wrench. Wheel nuts, studs, and mounting surfaces must be clean and dry. Failure to follow these instructions could result in wheel, nut, and/or stud damage.

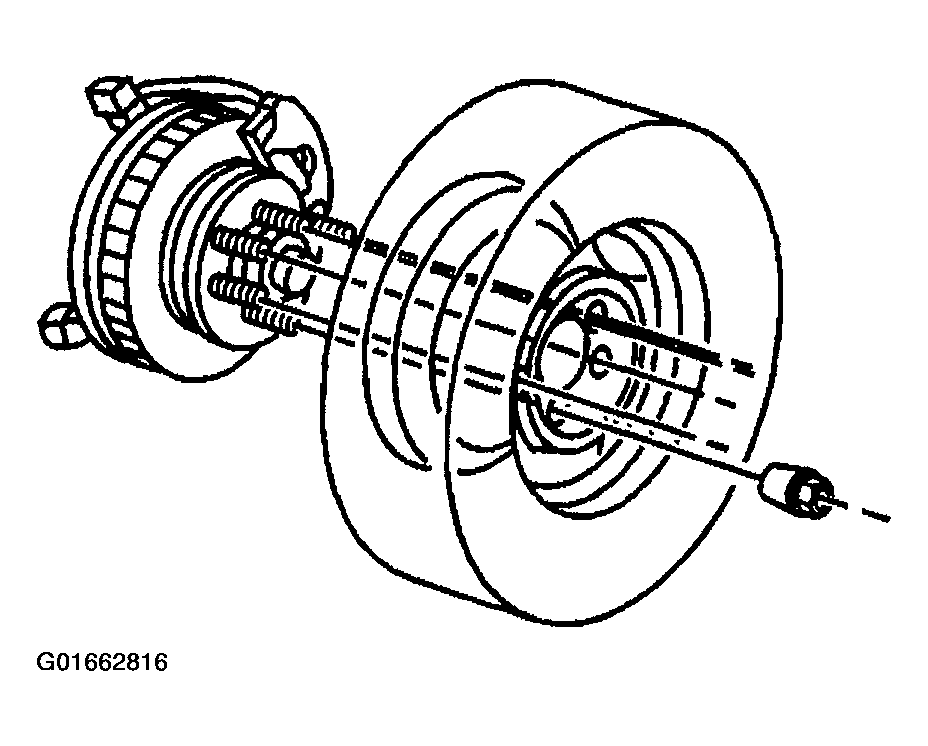

- Install the tire and wheel. Align the locating mark of the tire and wheel to the hub.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Important: Tighten the nuts evenly and alternately in order to avoid excessive runout.
- Install the wheel nuts.
Tighten
Tighten the wheel nuts as shown to 190 N.m (140 lb ft).
- Remove the safety stands.
- Lower the vehicle.
