Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the rotor. Refer to BRAKE ROTOR .
  4. Remove the wheel stud from the axle flange using the J 43631  for the 15 series.
  5. Remove the axle shaft for vehicles with 9.5 in ring gear. Refer to AXLE SHAFT & BEARING .
  6. Remove the rear hub assembly for vehicles with 10.5 in ring gear. Refer to AXLE SHAFT & BEARING .
  7. Remove the wheel stud from the axle flange using the J 43631.
  8. Remove the wheel stud from the hub flange using the J 43631.

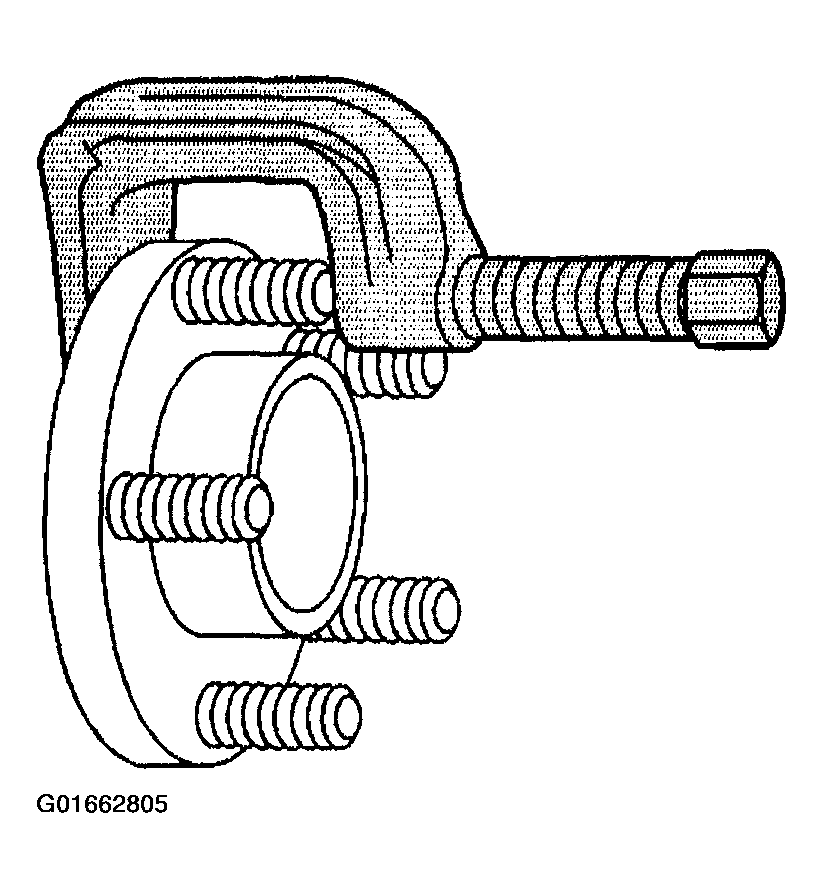

    Fig 1: Removing Wheel Stud
    G01662805Courtesy of GENERAL MOTORS CORP.
