Under the Frame Rails

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, 2002 Chevrolet Avalanche, and 2002 Cadillac Escalade EXT. However, it is still accessible from the selected car via links, so may be relevant.

Important

The floor jack pad must not contact rocker panel or the floor pan

Position the floor jack pad under the frame rail pad.

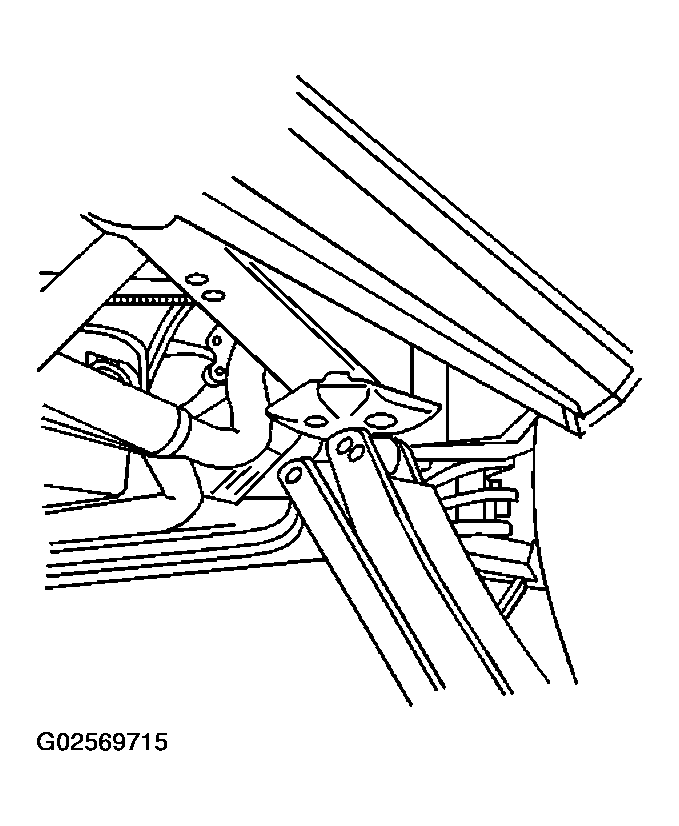

Fig 1: Jacking Under the Frame Rails
G02569715Courtesy of GENERAL MOTORS CORP.
