Front Hoist Pads

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, 2002 Chevrolet Avalanche, and 2002 Cadillac Escalade EXT. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The front hoist pads must not contact the rocker panels, the front fenders, or the floor pan.

Position the (frame contact) front hoist pads under the front frame between the lower control arm and the frame pad or the front frame pad when using a tip-up hoist pad.

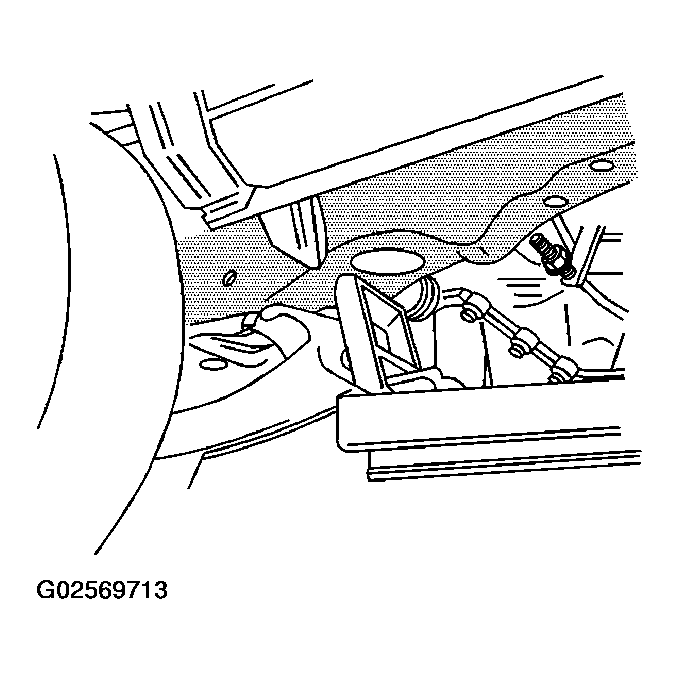

Fig 1: Front Hoist Pads
G02569713Courtesy of GENERAL MOTORS CORP.
