Removal Procedure
WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

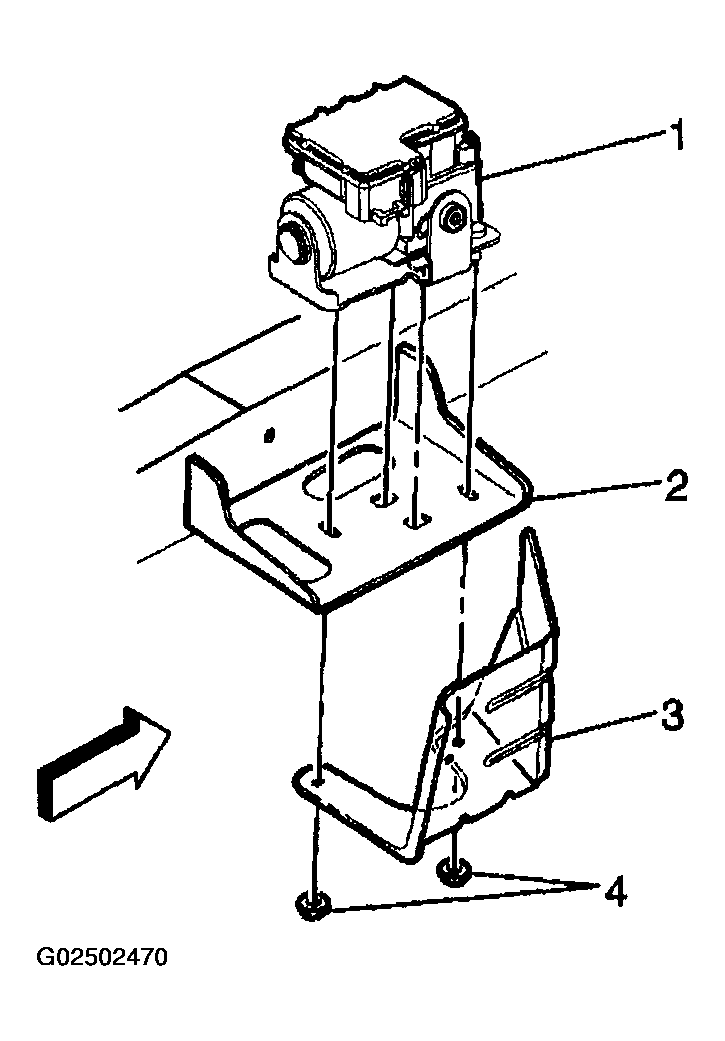

- Remove the fuel pipe shield (3) from the frame bracket (2) by removing the 2 nuts (4).
Important: Thoroughly wash all contaminants from around the EHCU (1). The area around the EHCU (1) MUST be free from loose dirt to prevent contamination of disassembled ABS components.
- Disconnect the 2 electrical harness connectors from the EBCM.
Important: Make sure that brake lines are tagged and kept in order for proper reassembly.
- Disconnect 5 brake lines from the BPMV.
- Slide the EHCU (1) off of the frame bracket (2).

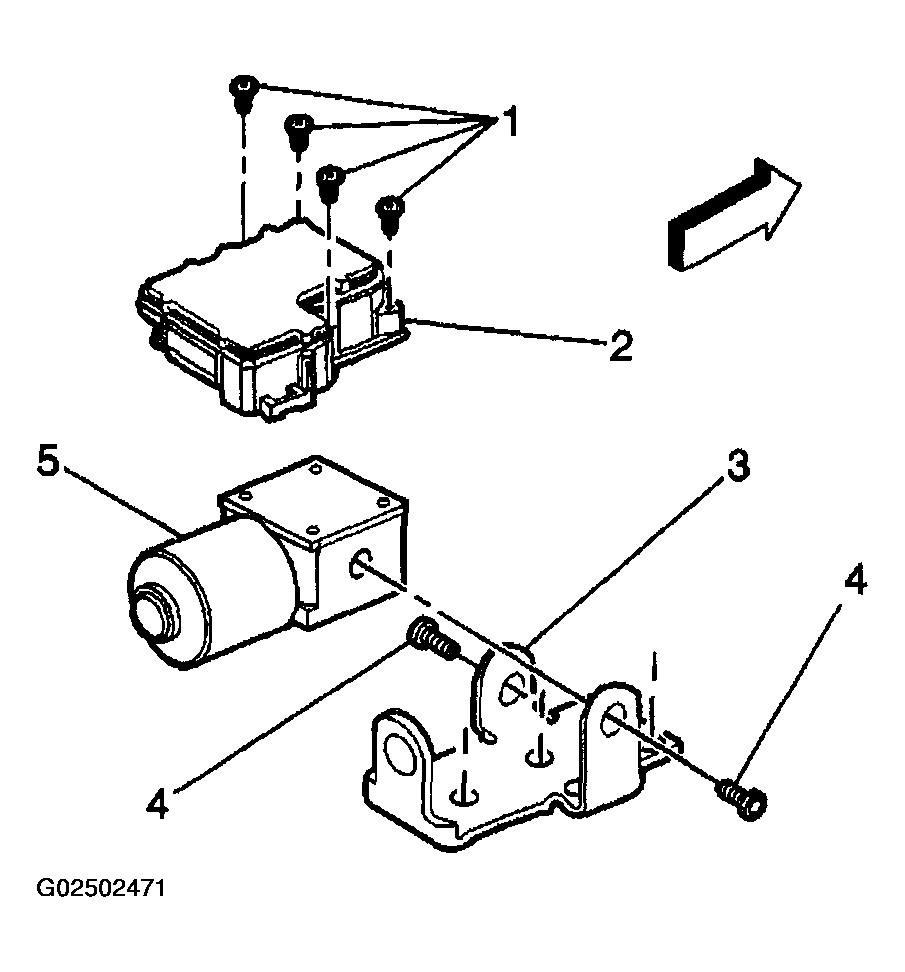

- Remove 2 bolts (4) securing the BPMV mounting bracket (3) to the BPMV (5).
- Disconnect the 2-way ABS pump motor connector.
- Remove the 4 T-25 Torx® bolts (1) from the EBCM (2).
Important: Do not use a tool to pry the EBCM or the BPMV. Excessive force will damage the EBCM.
- Remove the EBCM (2) from the BPMV (5). Removal may require a light amount of force.
Important: Do not reuse the EBCM mounting bolts. Always install new bolts.
- Clean the EBCM to BPMV mounting surfaces with a clean cloth.
