Diagnostic Aids

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Replace the EBCM if DTC C0273 or DTC C0284 continues to set intermittently.

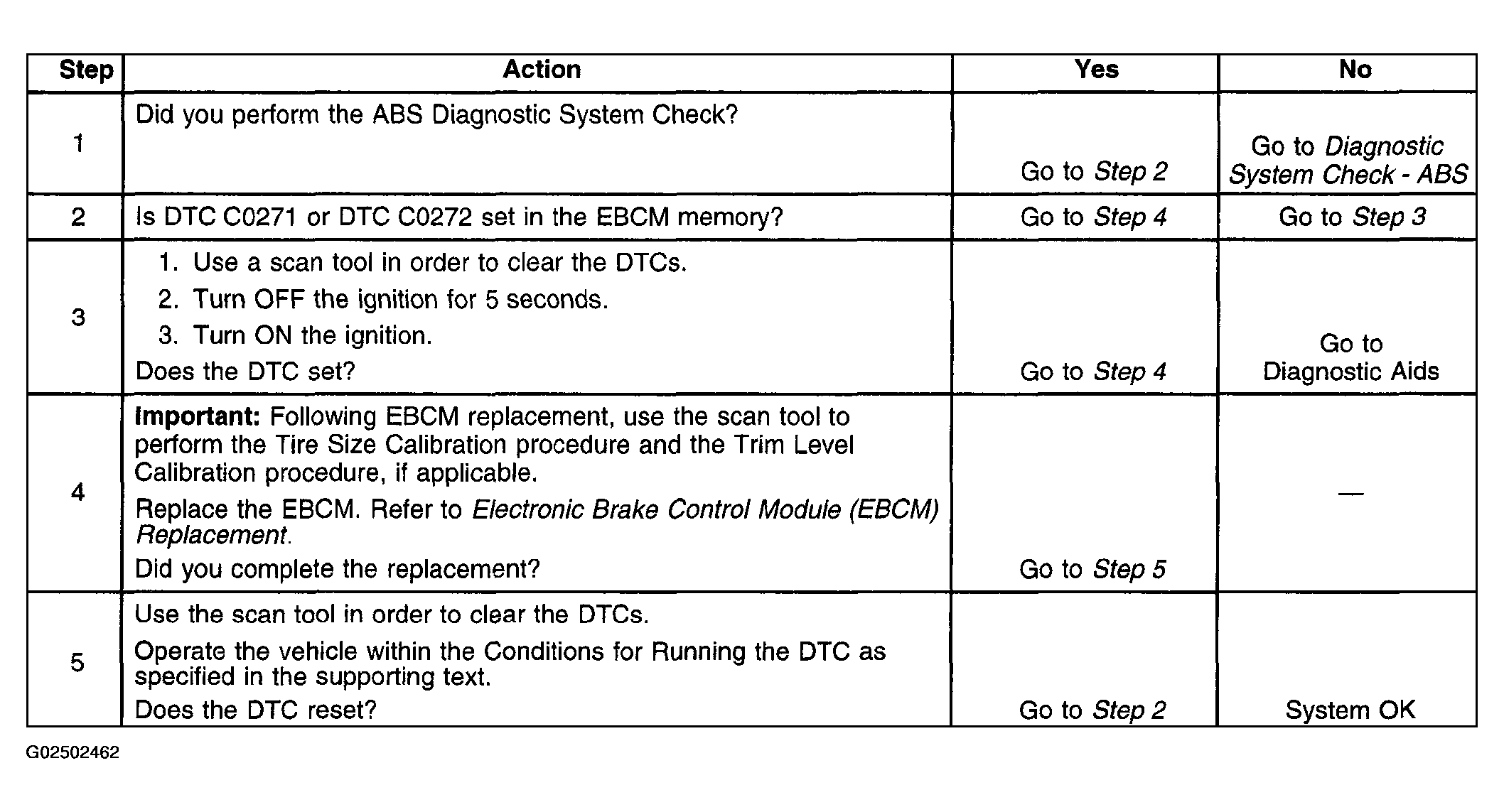

Fig 1: DTC C0271-C0273 Or C0284 Diagnosis
G02502462Courtesy of GENERAL MOTORS CORP.
