Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the park brake warning lamp switch electrical connector.
  2. Remove the retainer from the switch.
  3. Remove the park brake indicator switch (1) from the vehicle.

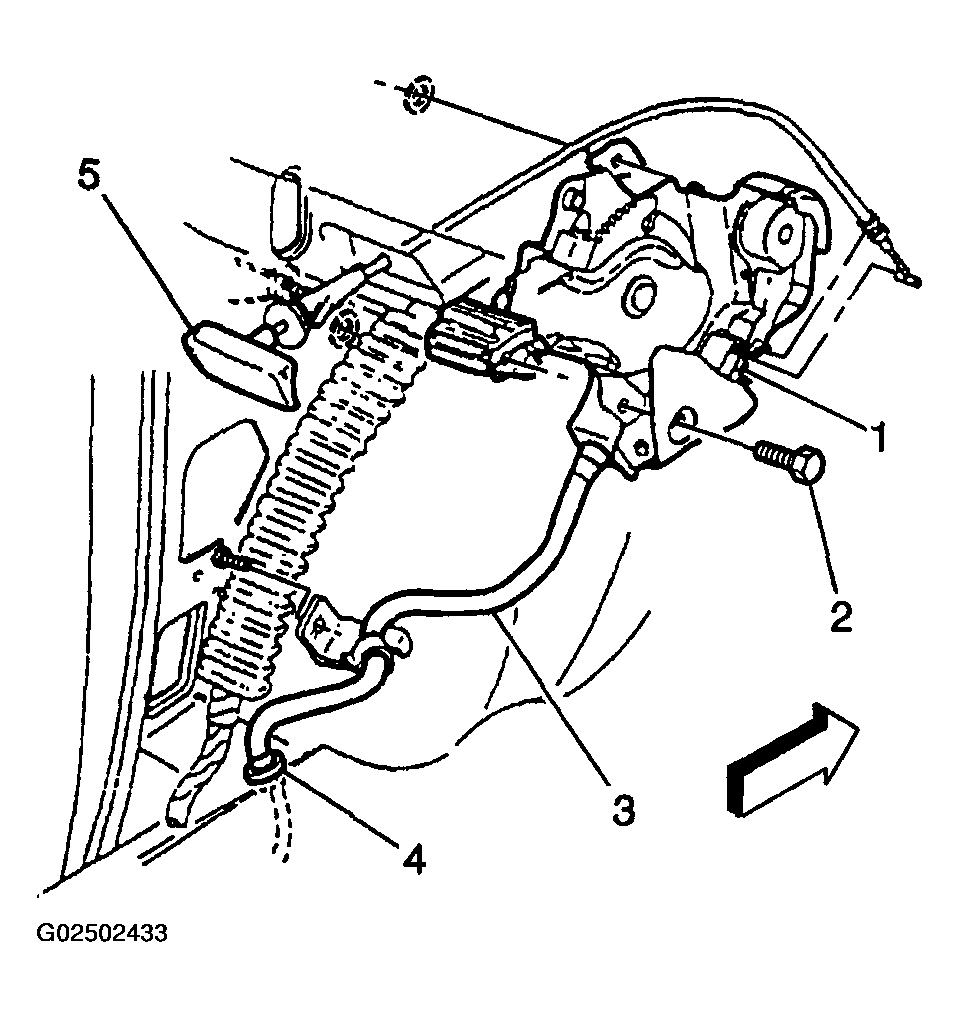

    Fig 1: Park Brake Indicator Switch
    G02502433Courtesy of GENERAL MOTORS CORP.
