Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the release handle cable and grommet from the park brake pedal assembly (1).
  2. Depress the locking tabs and remove the release handle (5) from the instrument panel.

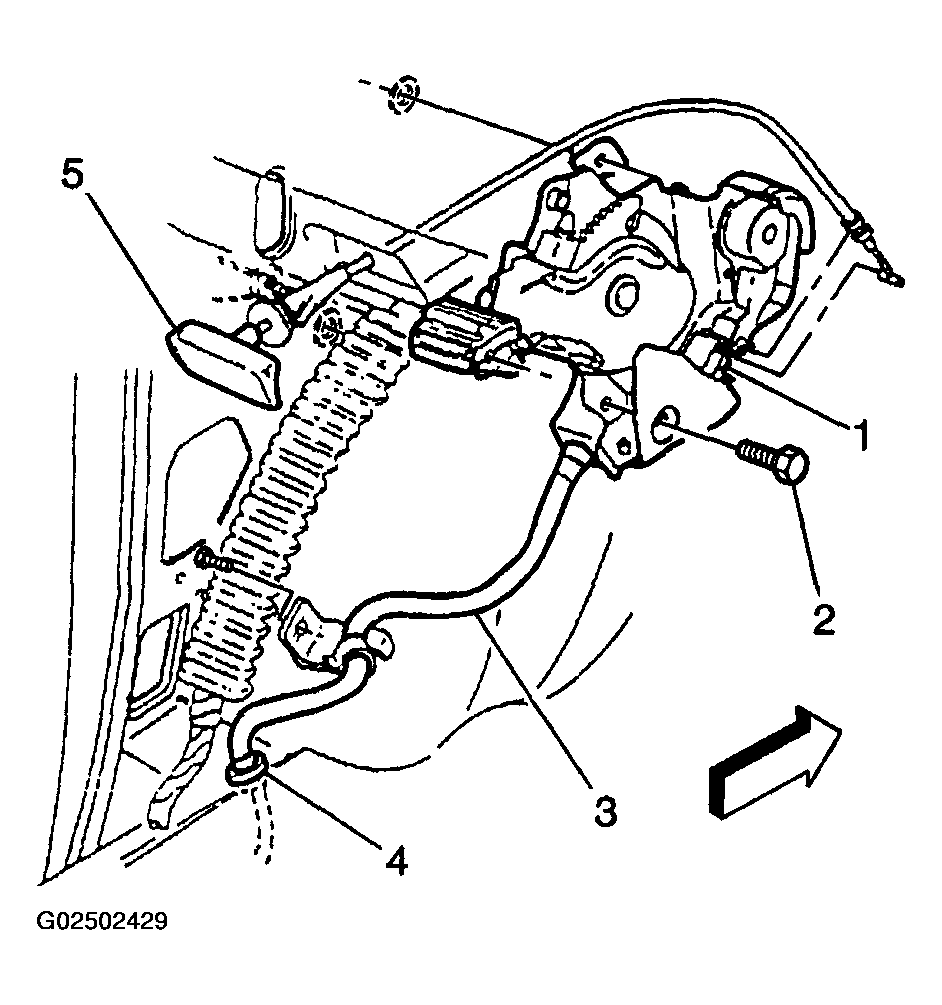

    Fig 1: Park Brake Release Handle Assembly
    G02502429Courtesy of GENERAL MOTORS CORP.
