Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the park brake (5).
  2. Raise the vehicle.
  3. Loosen the equalizer.
  4. Lower the vehicle.
  5. Remove the release handle cable and grommet from the park brake pedal assembly.
  6. Depress the locking tabs and remove the release handle from the instrument panel.
  7. Disconnect the electrical connector from the park brake switch.
  8. Remove the bolts (2).

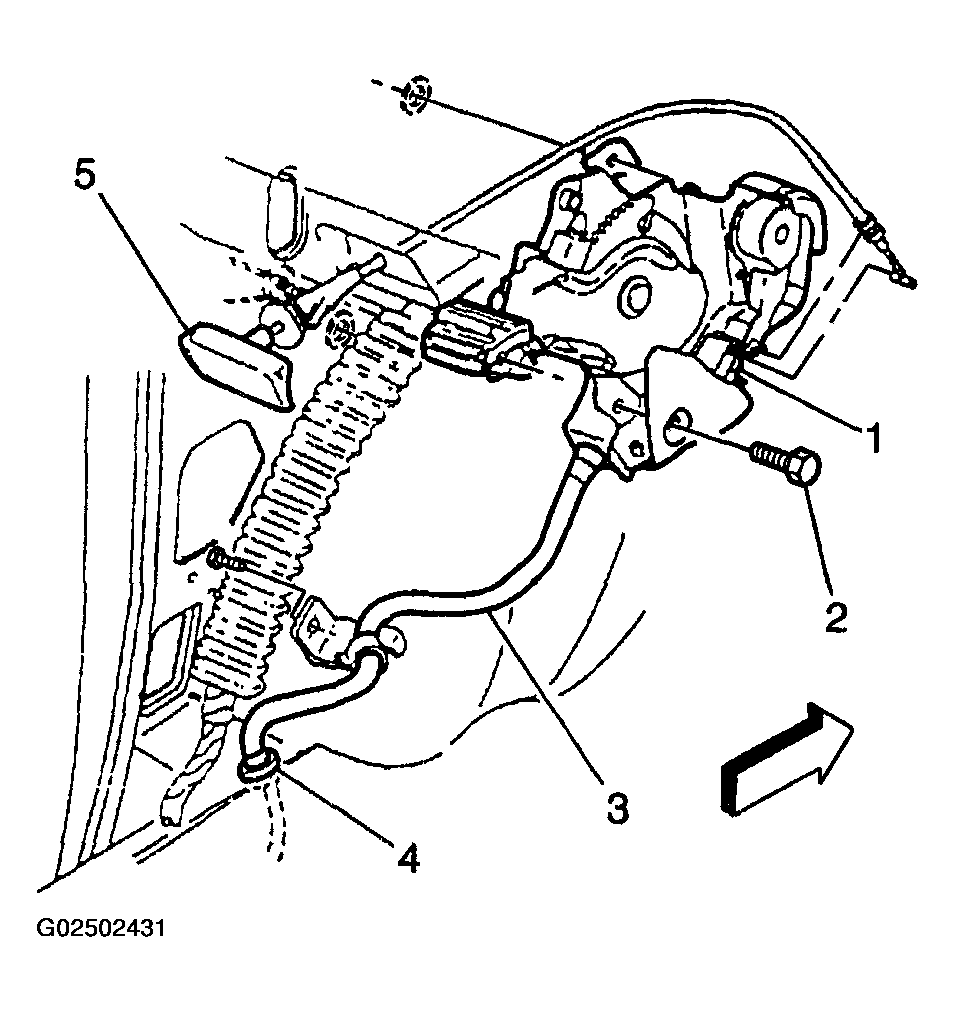

    Fig 1: Park Brake Release Handle Assembly
    G02502431Courtesy of GENERAL MOTORS CORP.
  9. Disconnect the park brake cable (3) from the lever (1). The locating tab on the lever must I be straightened to release the cable.
  10. Depress the locking tabs on the park brake cable housing and remove the cable housing from the pedal assembly.
  11. Remove the lever assembly from the vehicle.
