Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drum. Refer to REAR BRAKE DRUM .
  2. Remove the drum brake shoes and hardware. Refer to REAR BRAKE SHOES .
  3. Remove the park brake hardware.

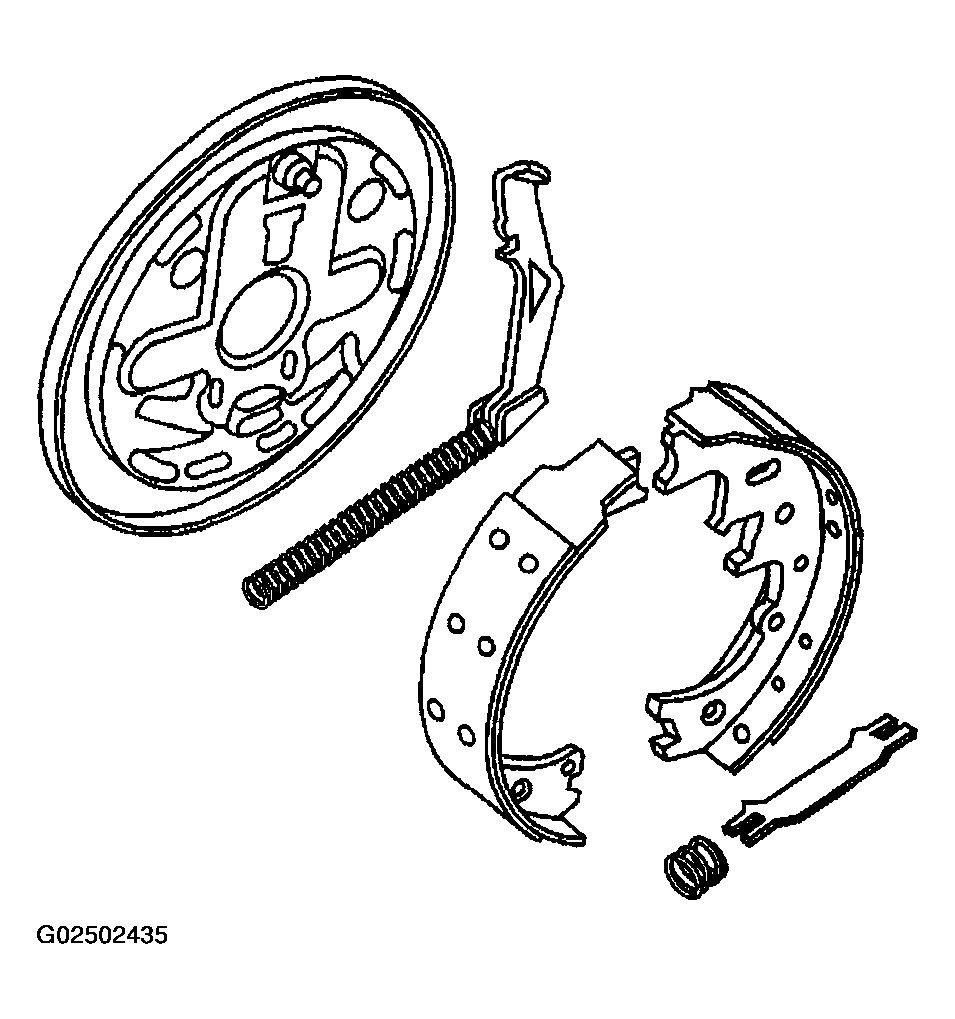

    Fig 1: Park Brake Hardware
    G02502435Courtesy of GENERAL MOTORS CORP.
