Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Loosen the equalizer.
  3. Remove the rear cable from the equalizer.
  4. Remove the brake drum and the shoe assembly. Refer to REAR BRAKE SHOES .
  5. Depress the cable-retaining fingers and remove the cable from the backing plate.
  6. Remove the rear cable from the vehicle.

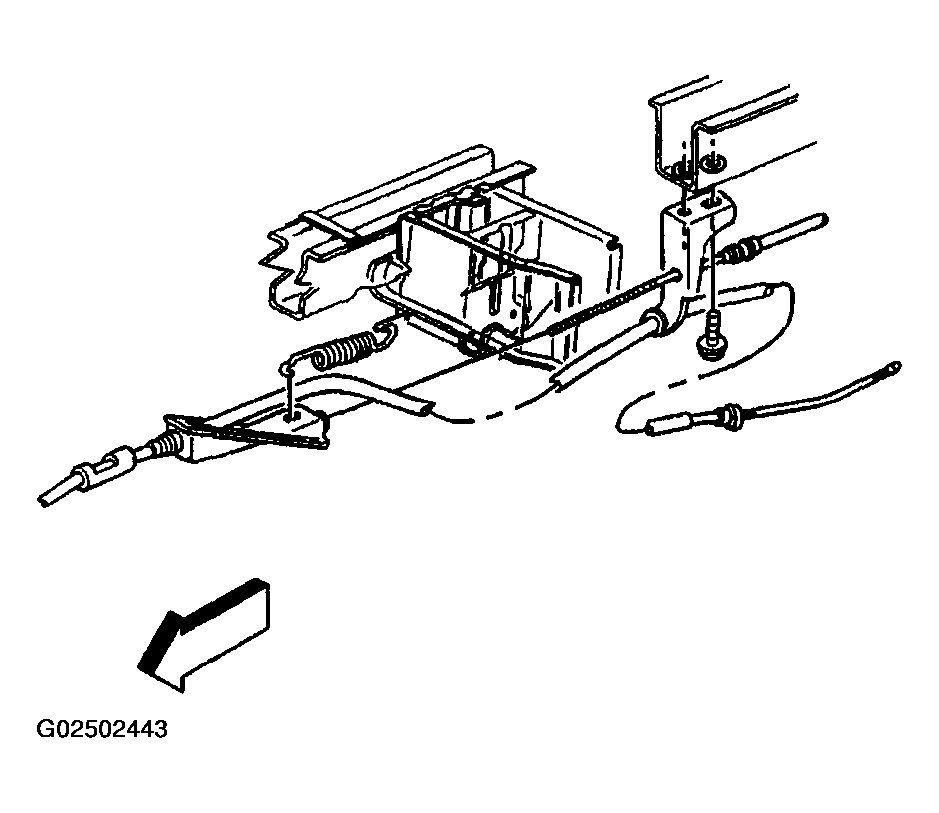

    Fig 1: Rear Park Cable
    G02502443Courtesy of GENERAL MOTORS CORP.
