Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Loosen the park brake cable at the equalizer.
  3. Remove the front park brake cable from the park brake cable connector.

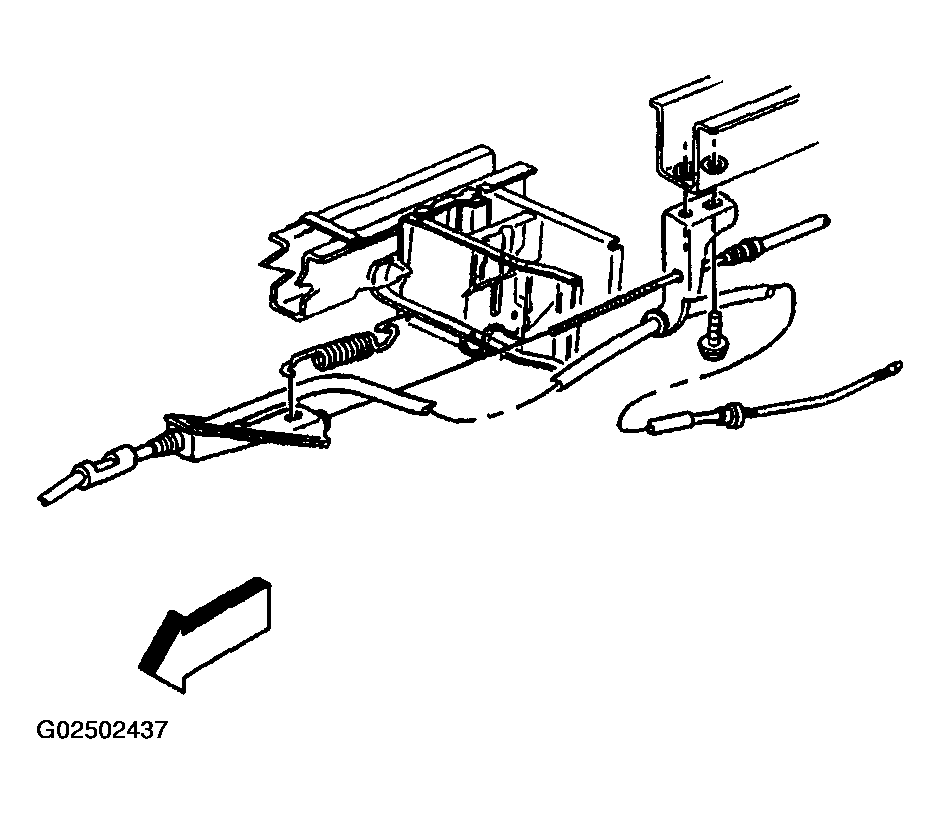

    4. Fig 1: Front Park Brake Cable
    G02502437Courtesy of GENERAL MOTORS CORP.
  4. Lower the vehicle.
  5. Remove the front cable (1) from the lever assembly (2).

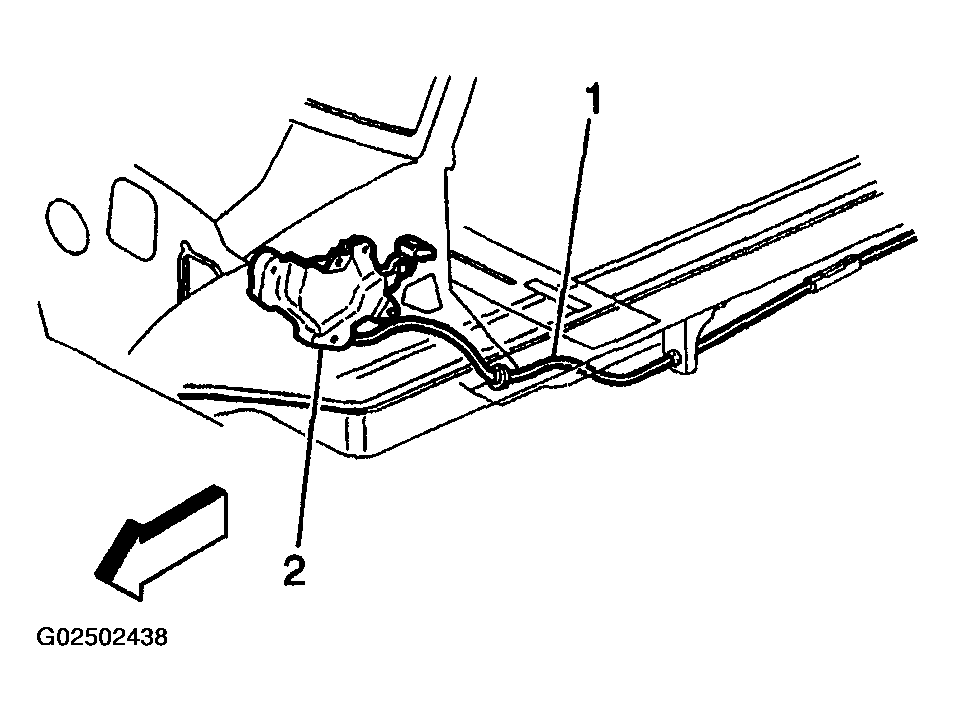

    6. Fig 2: Removing Front Cable From Lever Assembly
    G02502438Courtesy of GENERAL MOTORS CORP.
  6. Remove the cowl side panel trim.
  7. Remove the lever assembly. Refer to Park Brake Pedal Assembly Replacement .
  8. Remove the step trim plate. Lift the rocker panel trim and peel back: the carpet to expose the park brake cable grommet (4).
  9. Remove the front cable (3). Unclip the cable and pull through the body.

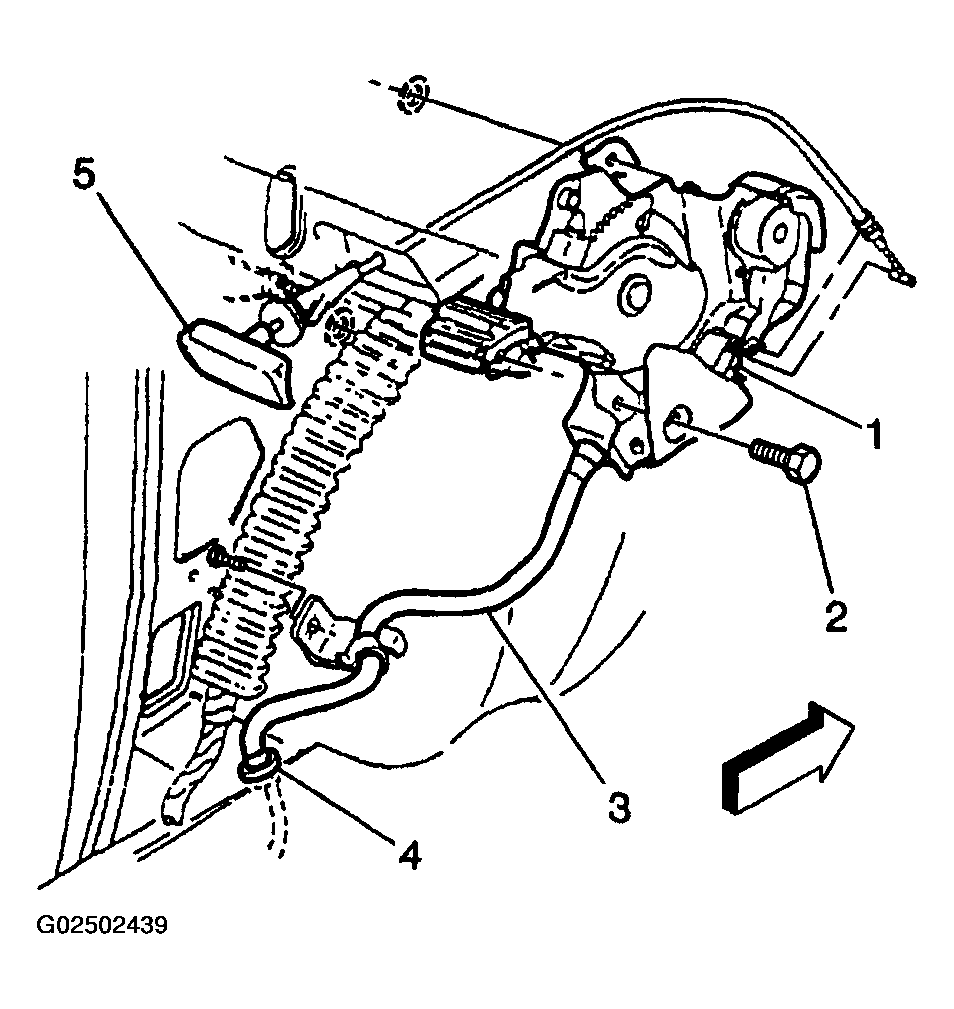

    Fig 3: Park Brake Pedal & Cable Assembly
    G02502439Courtesy of GENERAL MOTORS CORP.
