Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Loosen the equalizer and remove the threaded rod.
  3. Remove the front park brake cable from the connector.
  4. Remove the left rear park brake cable from the equalizer.

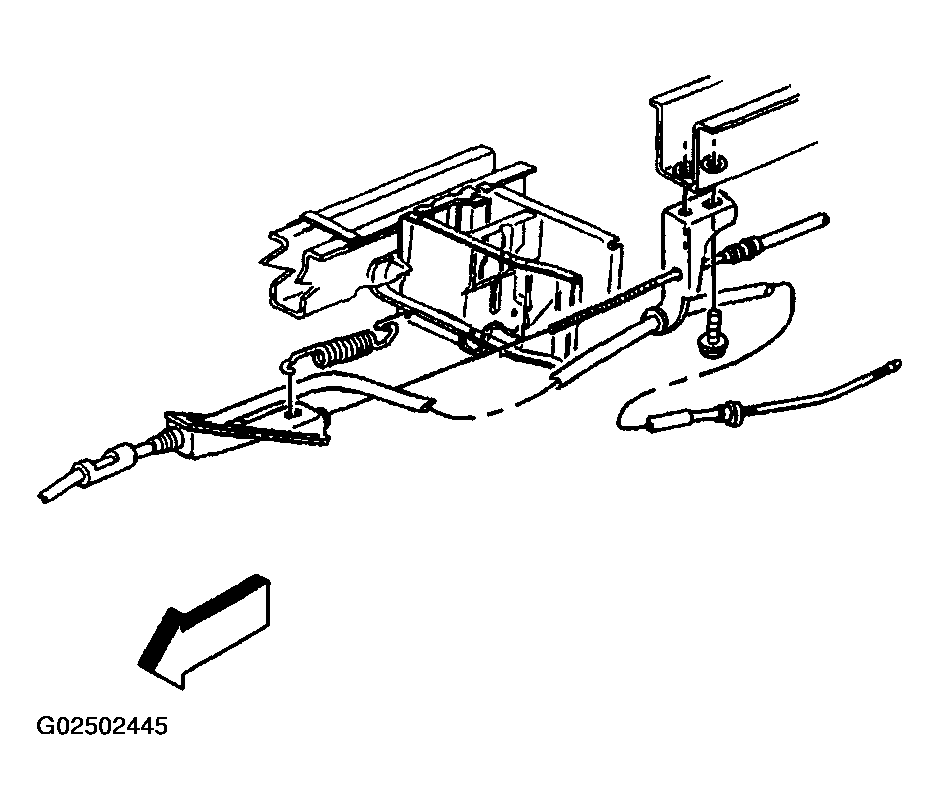

    Fig 1: Park Brake Cable Equalizer
    G02502445Courtesy of GENERAL MOTORS CORP.
