Park Brake System Diagnosis

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

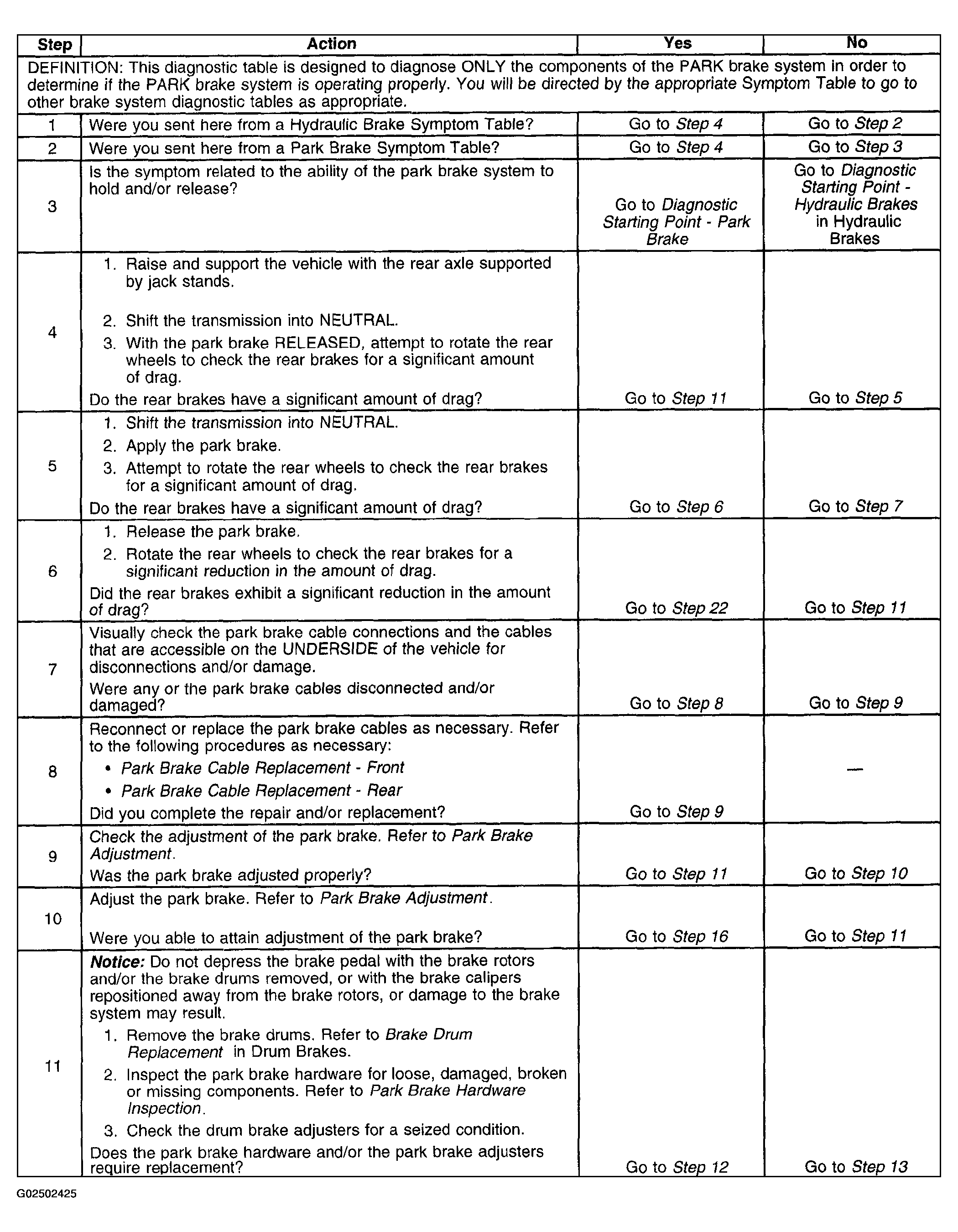

Fig 1: Park Brake System Diagnosis (Steps 1-11)

Courtesy of GENERAL MOTORS CORP.

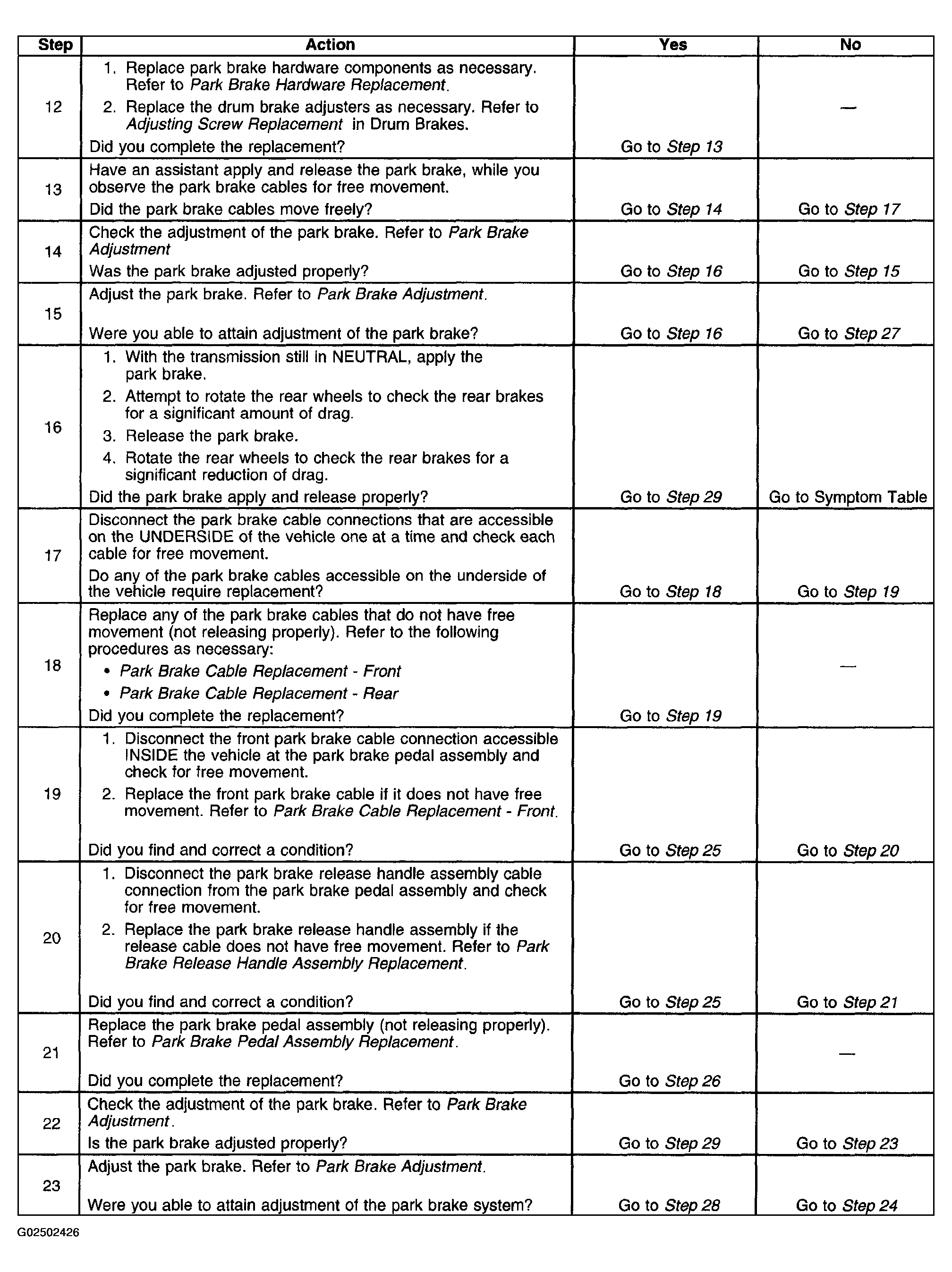

Fig 2: Park Brake System Diagnosis (Steps 12-23)

Courtesy of GENERAL MOTORS CORP.

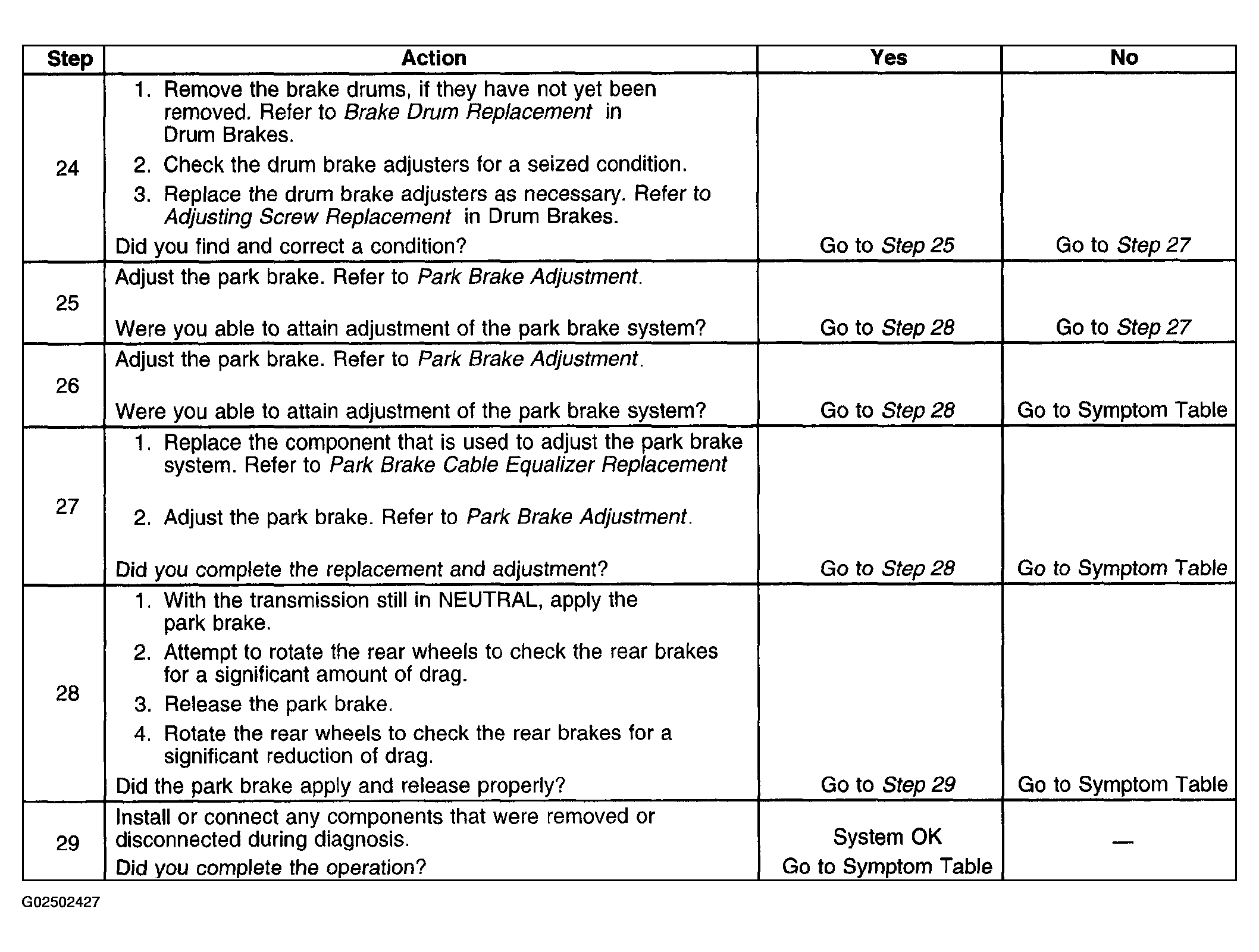

Fig 3: Park Brake System Diagnosis (Steps 24-29)

Courtesy of GENERAL MOTORS CORP.
